FPS Logging

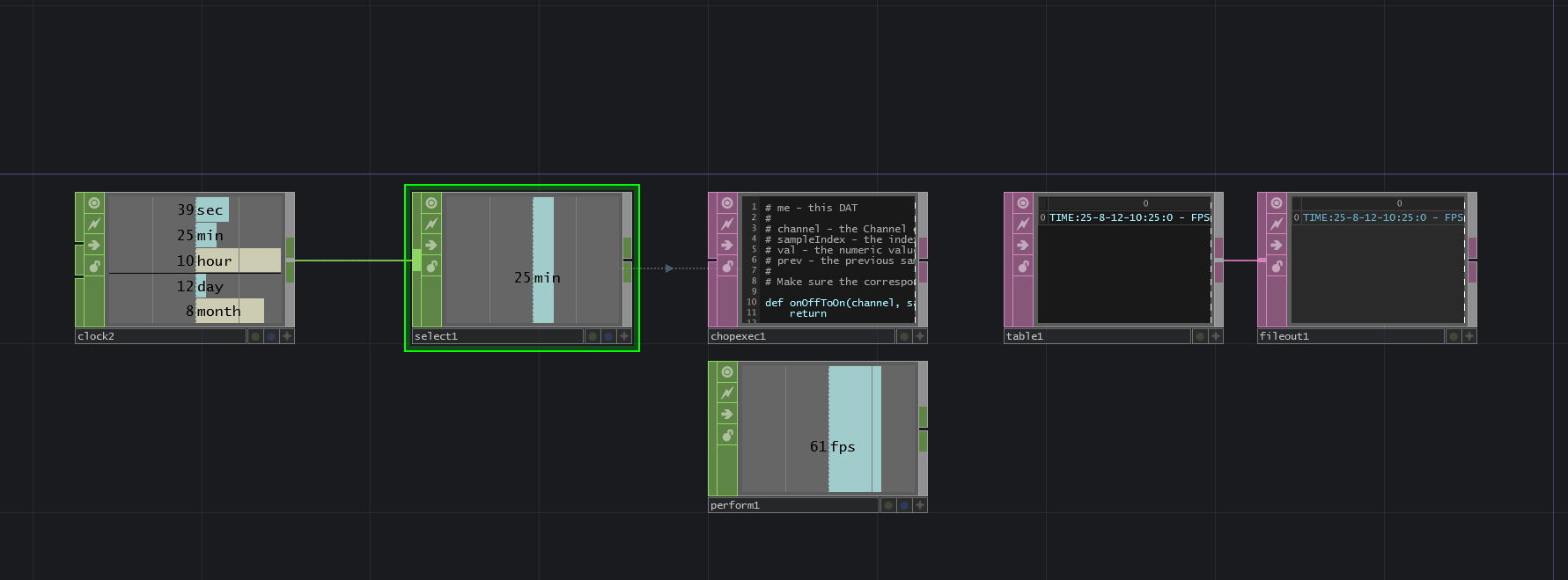

When we want to test the performance of our project we can write a Log and monitor the FPS over time. For that we take a ClockCHOP use it's parameters and join them in a f-string like in the code below.

Every time the parameter changes we overwrite the first line in the TableDAT and pulse to write a new line into a log file with FileOutDAT.

def onValueChange(channel, sampleIndex, val, prev):
    clock = op('clock2')
    # Get data from clock
    sek = int(clock[0])
    min = int(clock[1])
    hr = int(clock[2])
    day = int(clock[3])
    month = int(clock[4])

    # construct date
    date = f'25-{month}-{day}-{hr}:{min}:{sek}'
    fps = op('perform1')[0]

    # set date and fps as first line in table

    op('table1')[0,0] = f'TIME:{date} - FPS:{fps}'

    # pulse the writing of a new line
    op('fileout1').par.write.pulse()
    return

Download Example File
