Stride

Stride is the build-in 3D render engine of vvvv. Stride contains primitives, shaders, lights and more. We output our stride composition into a SceneWindow.

Shortcuts

Reset camera in RenderWindow - R Show helper in Scene - F4

Transformations

For basic information about transformations see here.

Transform between

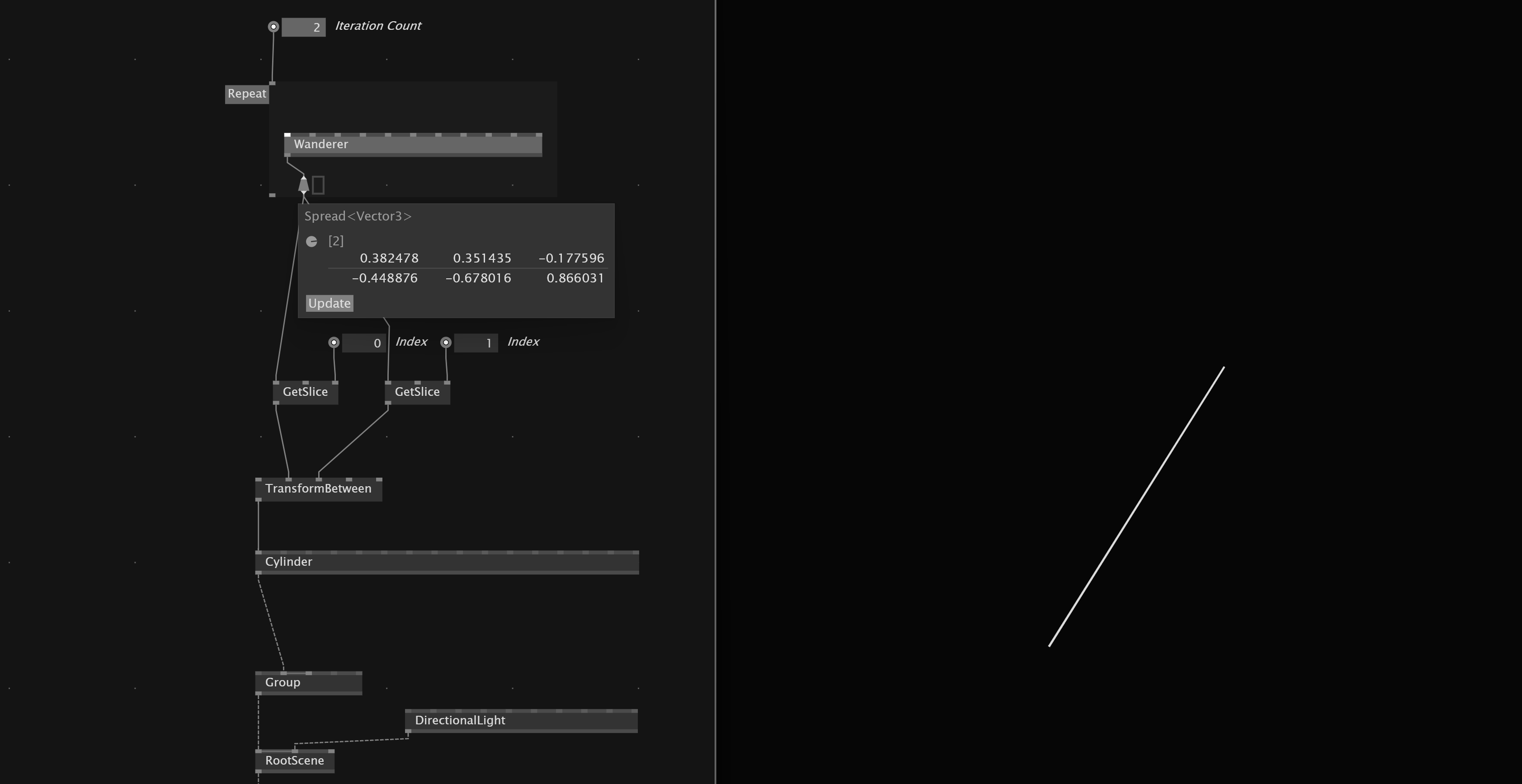

The TransformBetween node allows to transform a shape so it is positioned between the two input positions.

Child Transformations

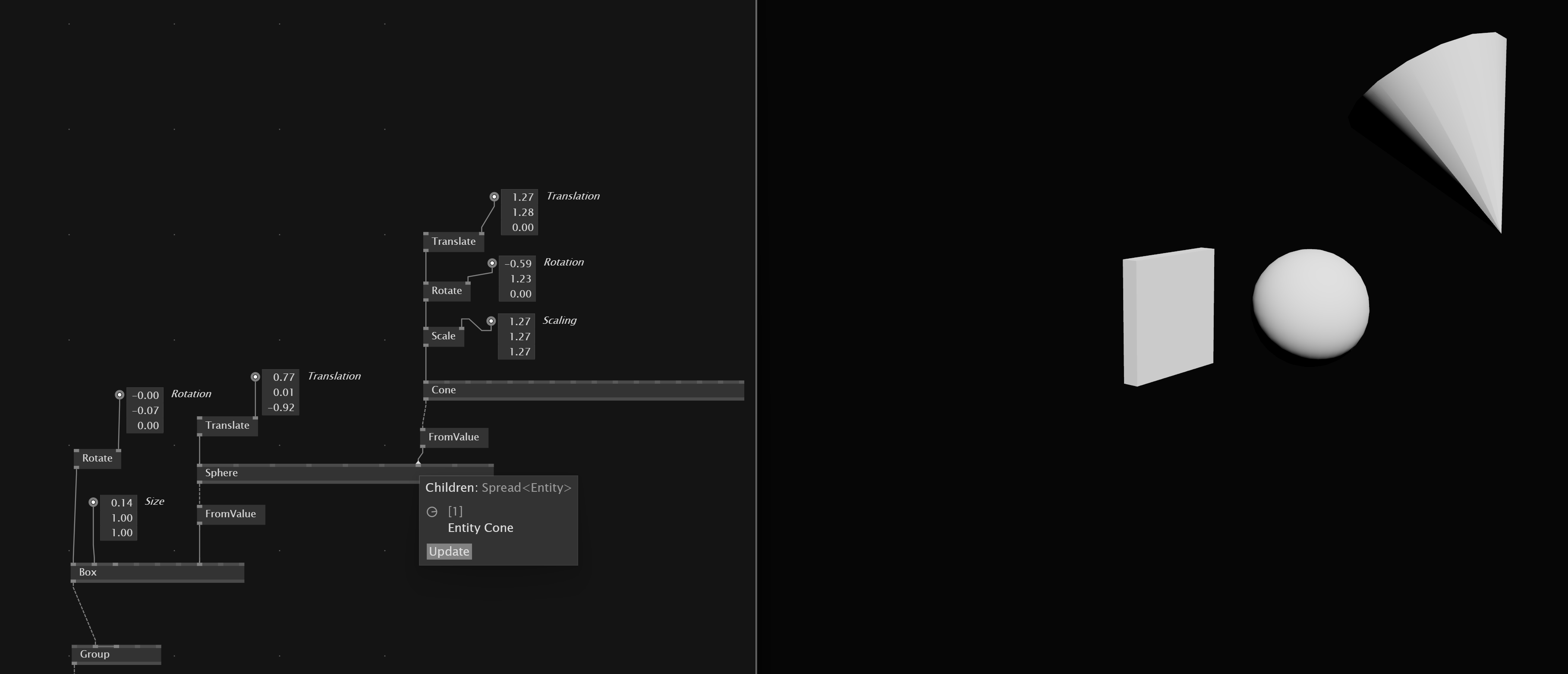

To have shape being transformed relative to a parent shape we can set them as a Child entity to the parent.

Scale shape uniformly

The UniformScale allows us to scale a shape on all three axis with one scalar value.

Materials

With the ColorMaterial node we can set a material for the meshes of the primitives. Stride also has TextureMaterial, PBRMaterials.

Color Material

When using Color Material shading is disabled and lights won'T have any effect on the volume.

PBR Material

PBRMaterials enable shadows and the define how lights will be reflected on the volume.

To set the transparency on a PBRMaterial we can use a Blend node and set alpha value.

Texture as Diffuse Color of PBR

With a ColorMap node we can translate a texture into a diffuse color input for pbr materials

TextureMaterial

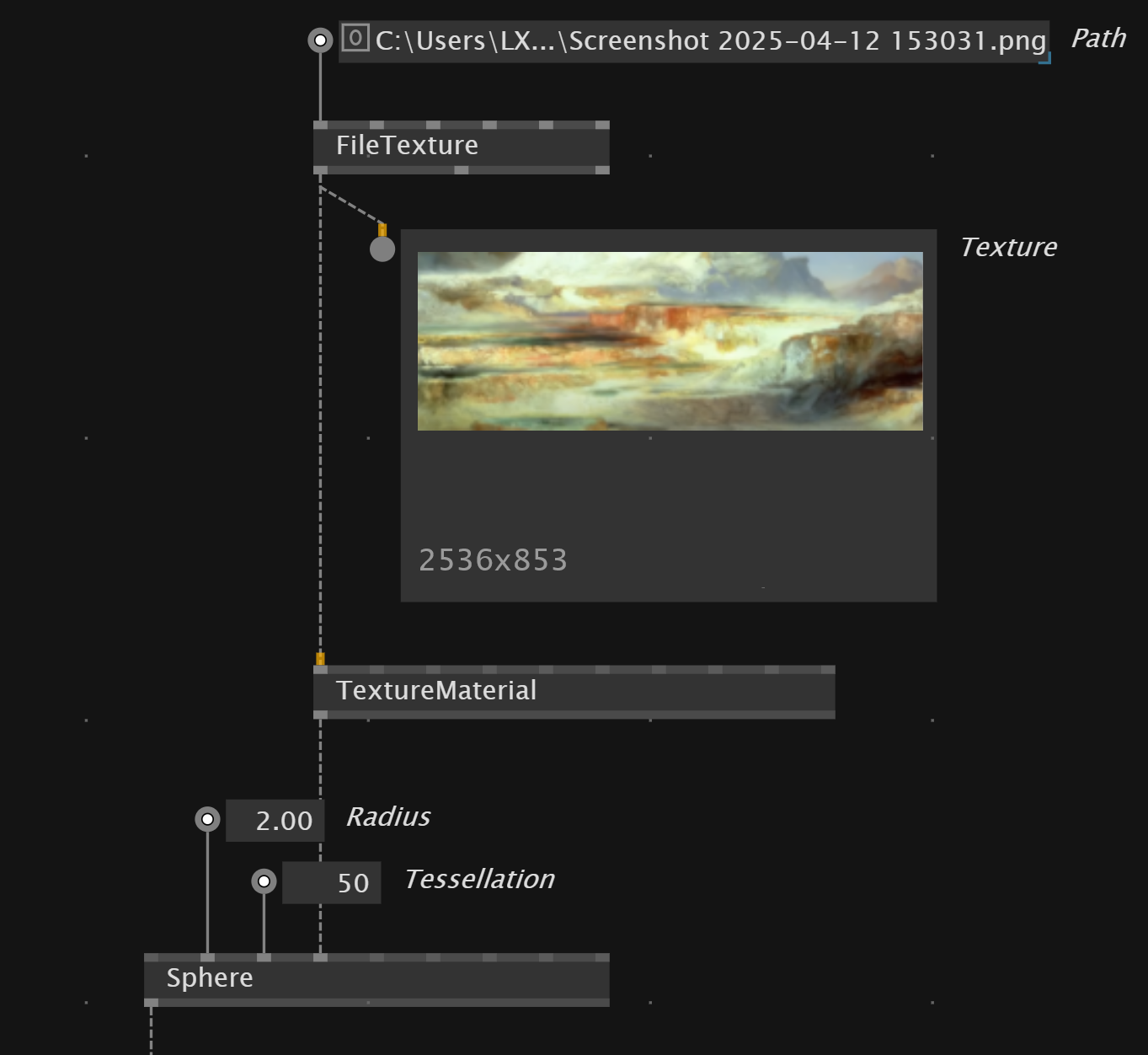

If we want to apply textures to our model we can load the texture with FileTextureplug that into a TextureMaterial.

Primitives

Stride brings build-in primitives: - Box - BoxSphere - Capsule - Cone - Cylinder - Disc - Plane - Sphere - Teapot - Torus

Data types

Entity - models, lights, cameras Material - change look of entities when rendered Texture - image format

Group

We can combine multiple primitives in a Group node.

Group spread of elements

After a Loop we get a spread of entities. With a Group(Spectral) node we can convert the spread into a single entity.

Light

To see something in our scene we should add a light source. Stride has multiple lights: - AmbientLight - DirectionalLight - SkyboxLight - PointLight

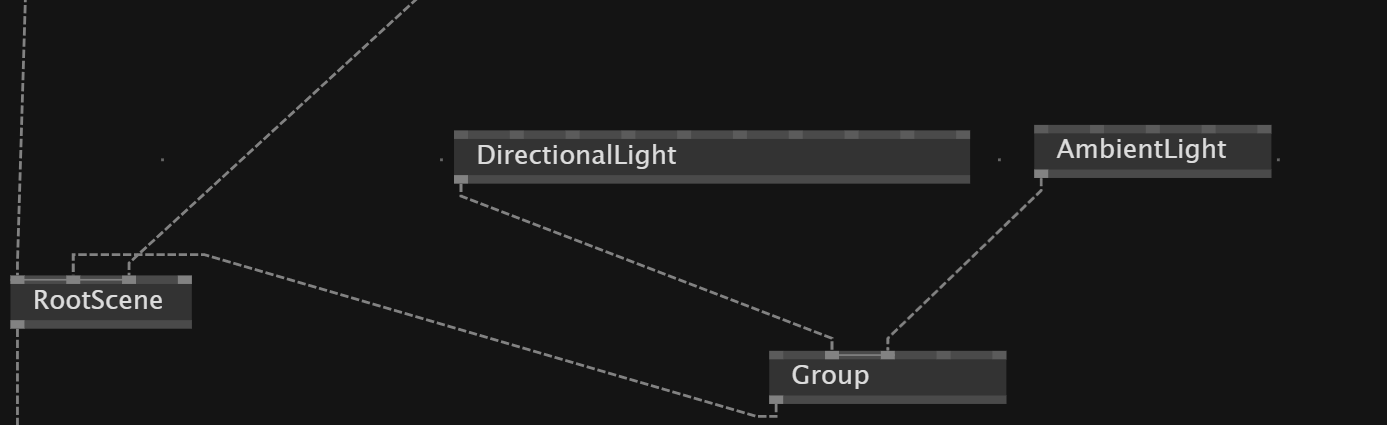

We also can add multiple light source with a Group node.

SkyboxLight

Allows you to add your own cubemap as the light source.

Shadows

In the primitive node we can define if it is a ShadowCaster or not.

Camera

When there is no Camera connected to the scene VVVV assumes the default orbit camera, which allows you to navigate through the scene.

When you put your own camera they need to be connected to the root scene and the SceneWindow

Render

To render our scene we need to join the primitives, groups,lights in a RootScene. This then get's plugged into the SceneWindow

In the `SceneWindow we can set also the background color of our render.

Render out image

When we want to just render our scene as an image we can plug RootSceneand Camera into a SceneTexture and then connect this to a TextureWindow node.

FullScreenQuadRenderer

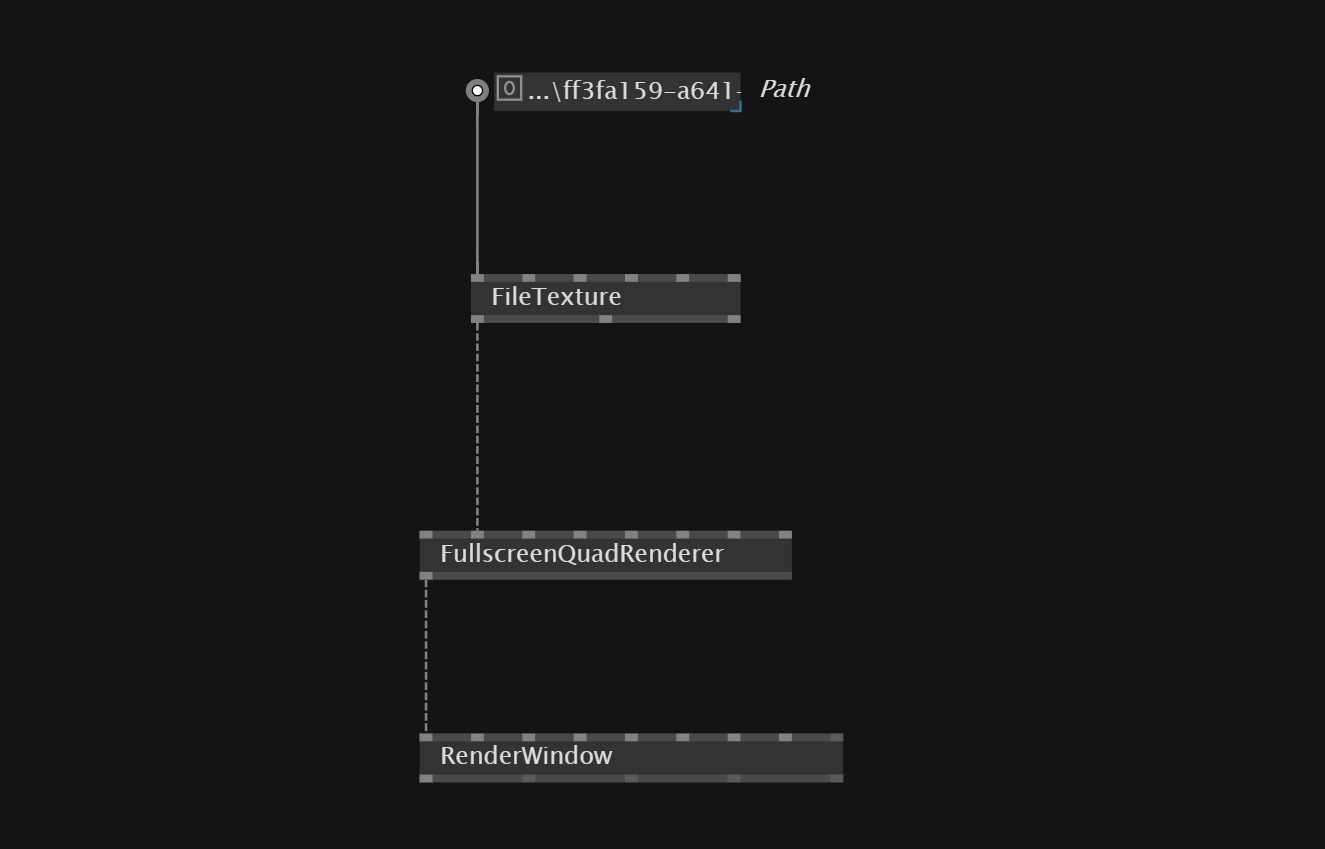

We can use FullScreenQuadRenderer to show a texture or image full screen in the RenderWindow.

Render Mesh in Wireframe

Stride has a Wireframe node that allows to render a MeshRenderer with a wireframe material. It is a advanced node.

PostFX

We can apply PostFX by plugging the node into the SceneWindow PostFX input.

Or we render into RenderTexture

Fog

The Fog node enables fog in the scene.

Outline

Outline creates a cartoon style effect.

Grain

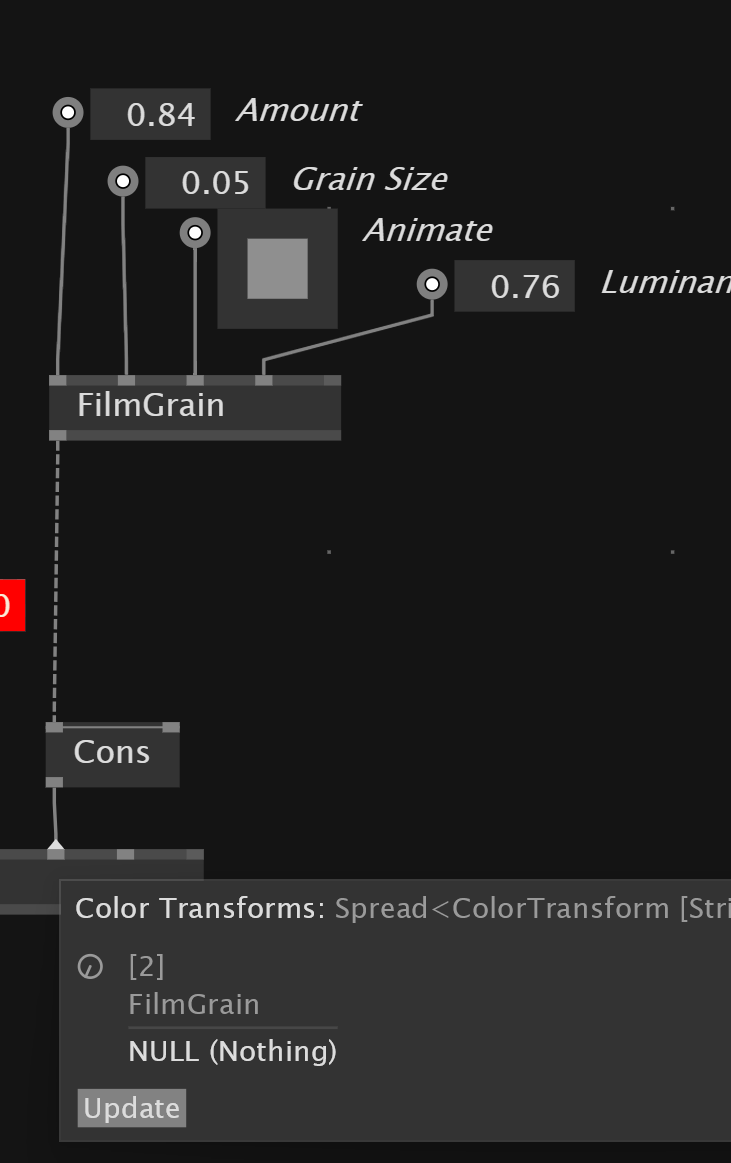

We can apply grain by plugging FilmGrain in to a Cons(Collection.Spread) and then into Color Transforms input.

LightStreak

Shining effect along bright areas direction.

LocalReflection

If you have for example a metal material for your shape and you want that the other objects in the scene get properly reflected on the material we can use LocalReflection PostFX node. It can affect your performance.

Shortcuts

Reset view - long press r

Convert 3D into 2D texture

Instead of outputting RootScene into SceneWindow we connect it to SceneTexture. Also plugin a FlatCamera mode into the SceneTexture. We then can use Stride.TextureFX to further manipulate the texture.

Texture

Stride offers static and dynamic texture sources -BubbleNoise -Checkerboard -Color -ColorPalette -Gradient -Halo -Halo(Gradient) -Liquish -Mandelbrot -Neurons -Noise -Circle -Electricity -Polygon - allows to draw shapes from a multi point input - good to draw a data line with polygon -Rectangle -SkiaTexture

Specific drawing techniques

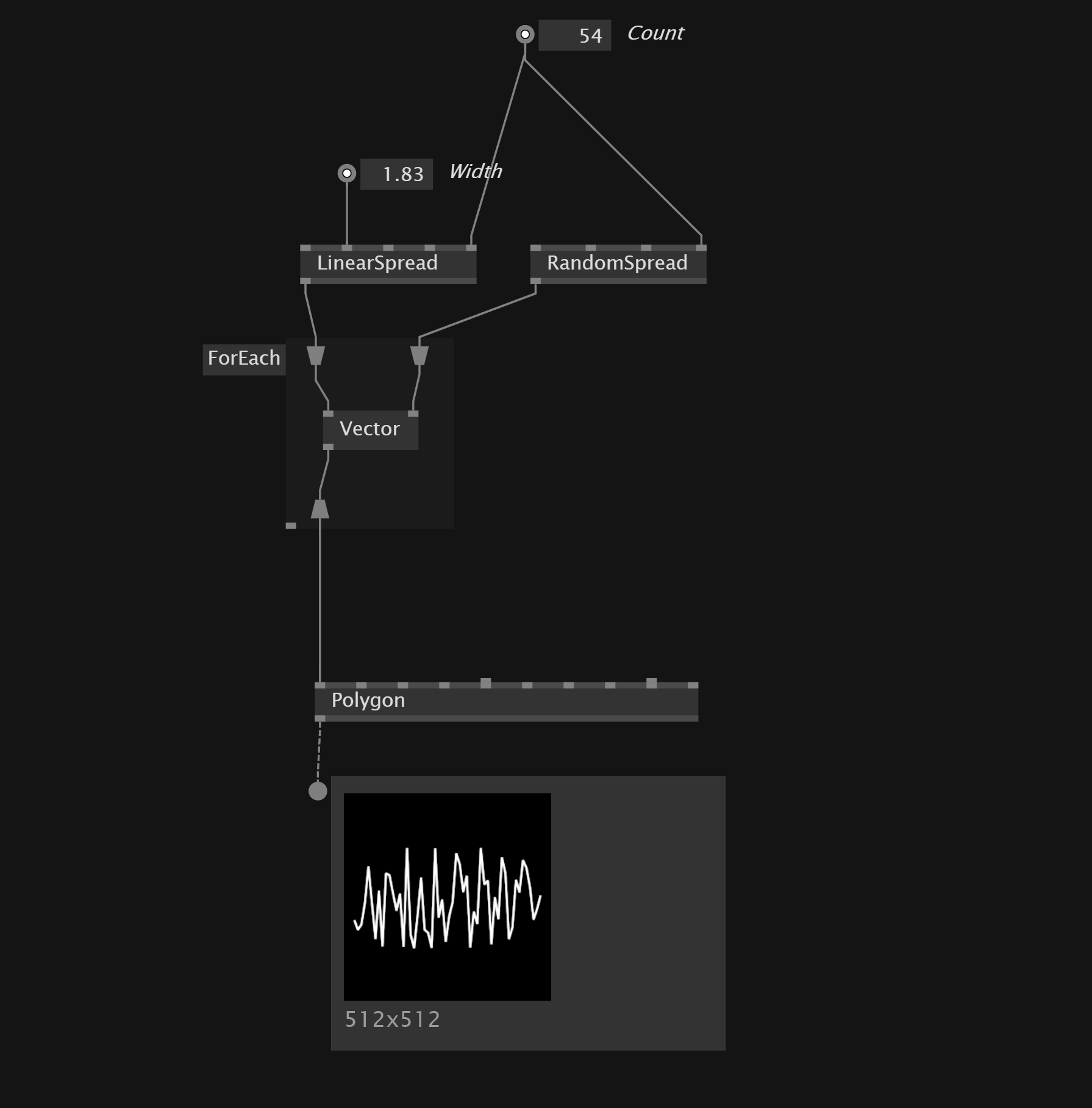

Draw a line with Polygon Node

Filters

Stride also offers a lot of Filter Shaders to manipulate the textures.

• ShiftRGB
• Threshold
• Quantize - reduce colors of input to stepped color output
• HSCB- hue,saturation,contrast,brightness color correction

Mixers

We can combine multiple texture with mixer nodes. - Blend - Blend between two textures using different blending options. - Pixelate - Blend between two textures using pixelate effect - Dissolve - Blend between texture using rough pixely effect

Video

In Stride we have to convert a VideoIn or VideoPlayer with a VideoSourceToTexture node and then we can use it as an input for TextureMaterial or when Stride.TextureFX enabled into a TextureWindow

Mixing Skia and Stride

SkiaTexture transforms skia drawing into a texture. This allows us to use it for 3D objects material or apply texture effects to it.

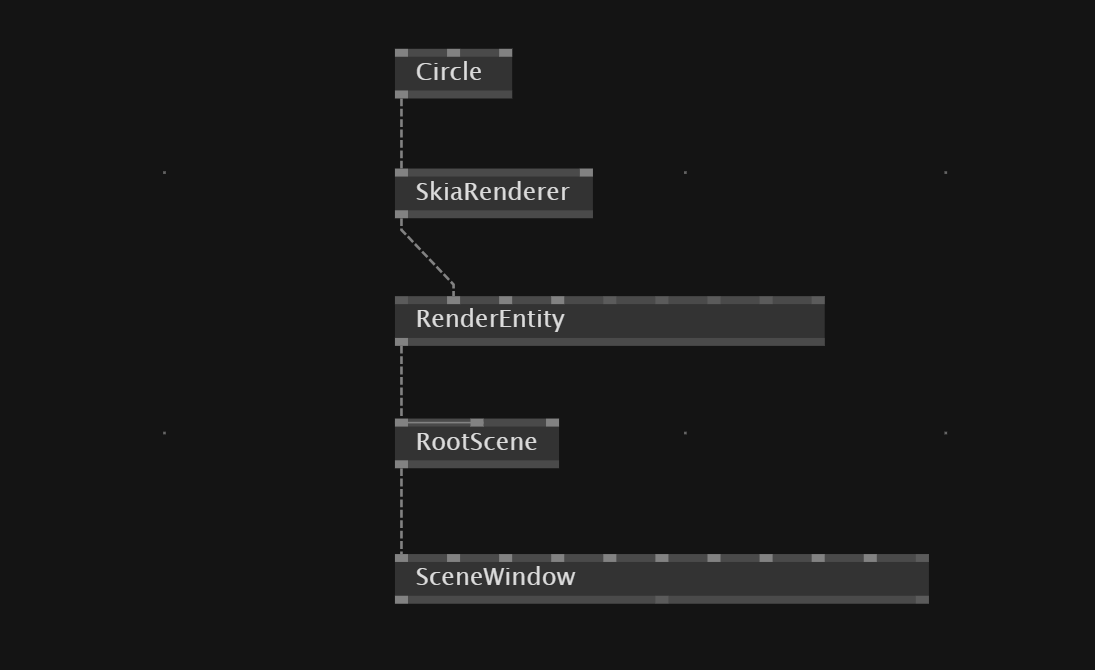

A performant way to show Skia in stride is to use SkiaRenderer and input it into a RenderEntity. This we then can add to the RootScene of Stride.

Convert Vector3 to Vector2

XY Node lets you quickly pick first to values of Vector3 and outputs Vector2 data type.

Load Model into stride

With the FileModelwe can load fbx obj files into stride. If you don't see the model you probably need to adapt the import scale size in the node

To preview the model in the scene we can use ModelEntity

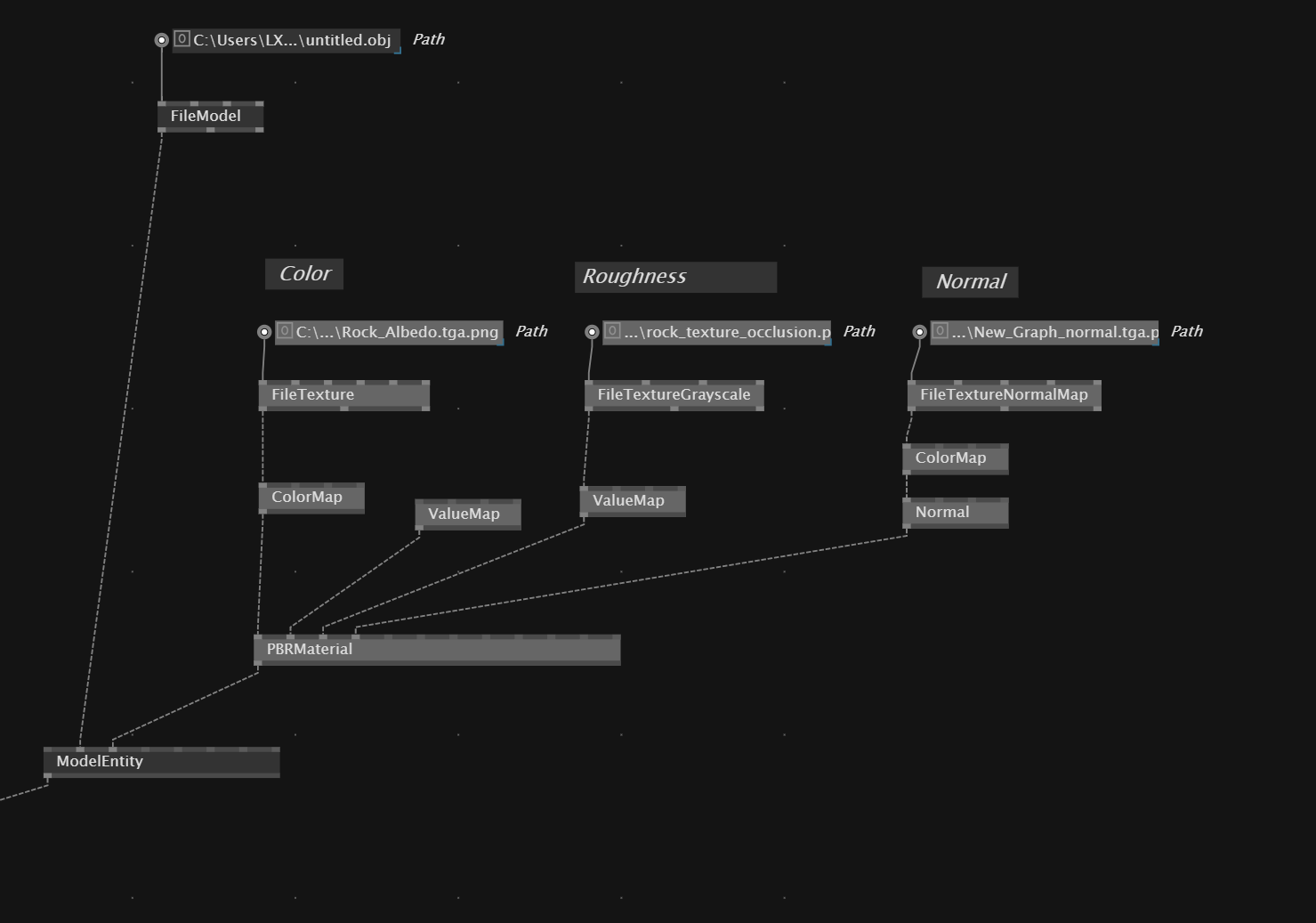

To assign the textures to our model we need a combination of FileTexture, FileTextureGrayScale and FileTextureNormalMap

Get data from Mesh

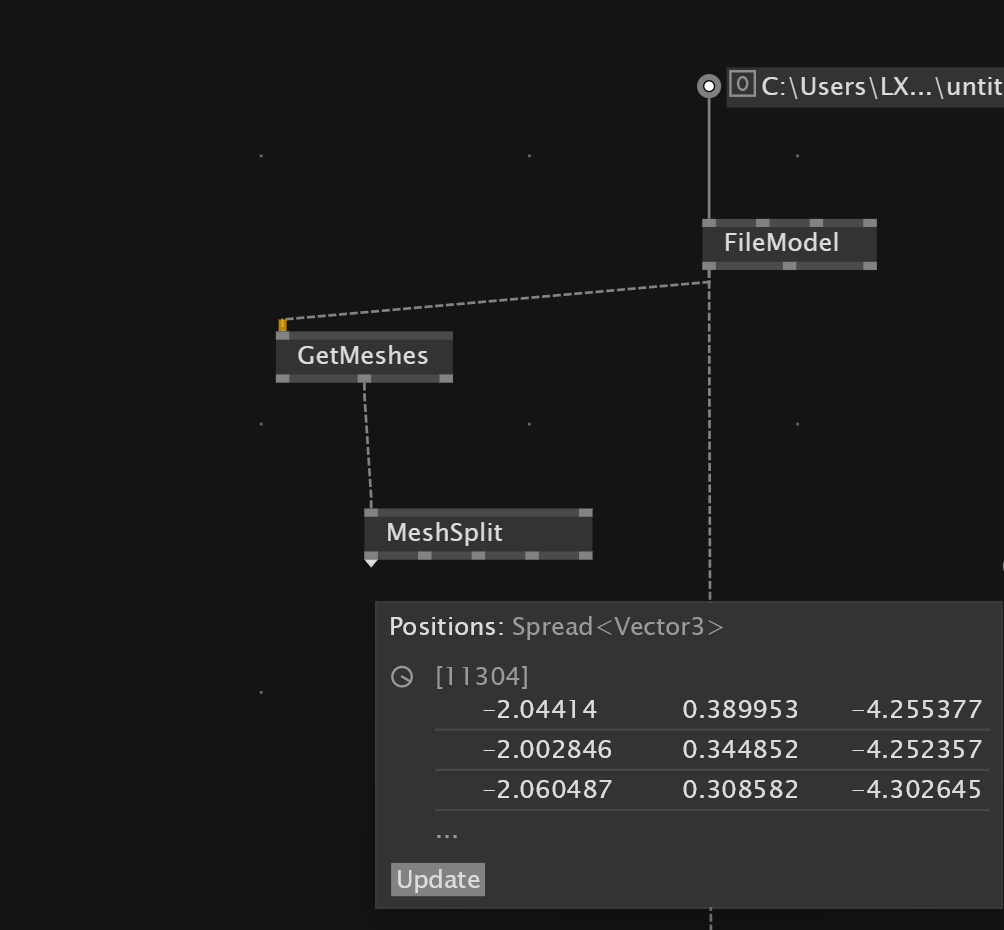

To get the data like positions of vertex, uvs, normals etc we can first pick the mesh we want from our model with GetMeshes and then split the data with MeshSplit.

GPU Instancing

To do GPU Instancing in Stride we need a spread of position data and feed it into a InstancingSpreadComponent. This we can transform into Component value with FromValue(Spread) and feed it for example into a Box as component.

We also can convert the position data into color values with Vector3(Split), feed it into a RGBA node and then collect the color data in ColorPerInstance

Background

If you want to create for example a gradient background for your Stride scene you can add a Background(Stride.Models) node to your RootScene. You then can add Gradient node from Stride.TextureFX as a Texture input into the Background.

Shaders

Further infos

A whole tutorial is here
