Storing Data
Pads
We can use Pad to store data and then to use or manipulate this data in the next frame.
When you create a Pad consider a distinctive name - you then can find the Pad in the node-browser.
A Pad is like a variable in other programming environments - we can store any data type in them. We you create it the Pad is undefined. To define it we ether need to connect the desired data type with the pad or right click -> configure

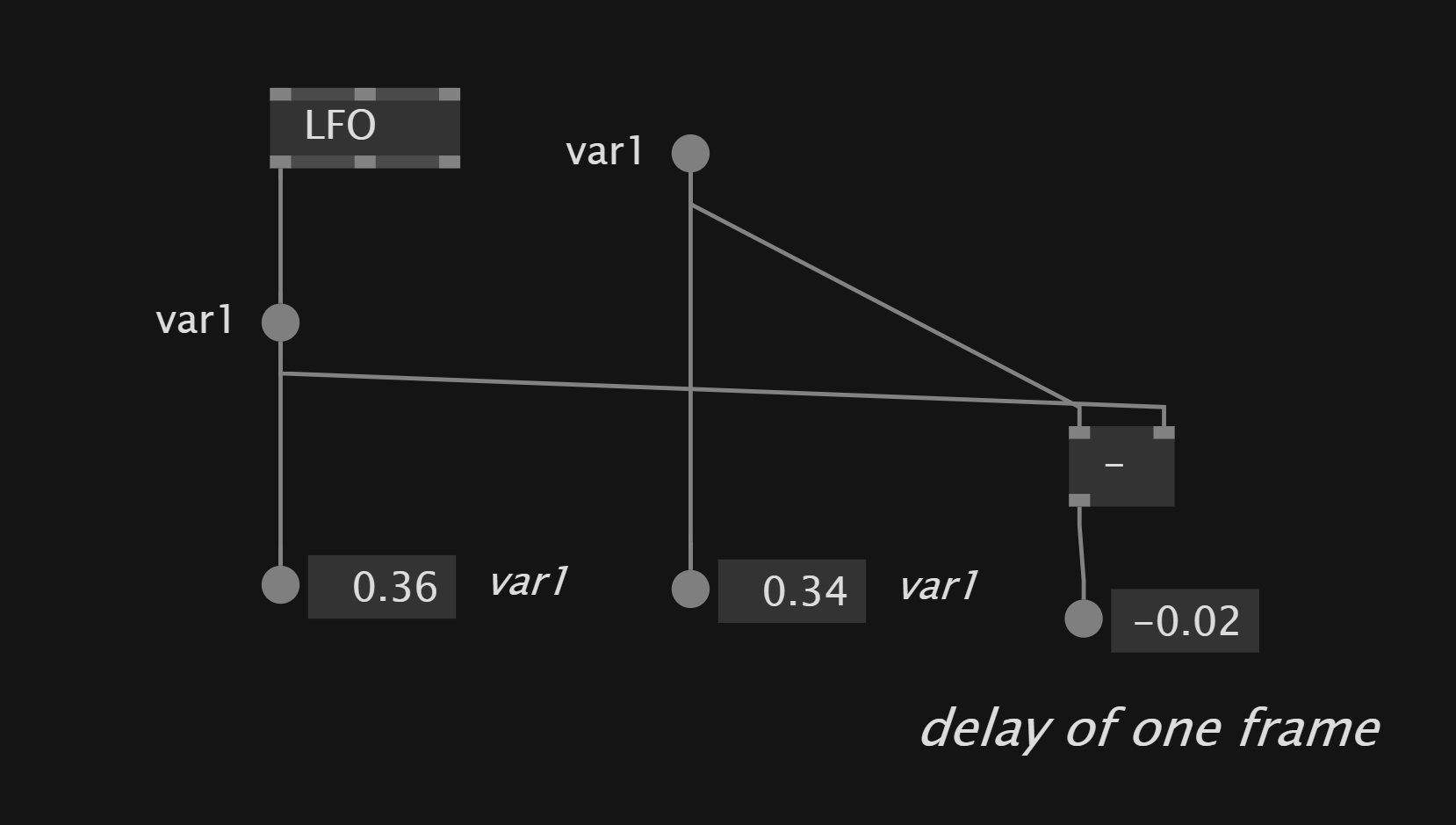

For real-time applications it is important to consider that the data from the Pad will be available in the next frame.
When you modify data from a Pad you always need to store the new data back into the Pad.

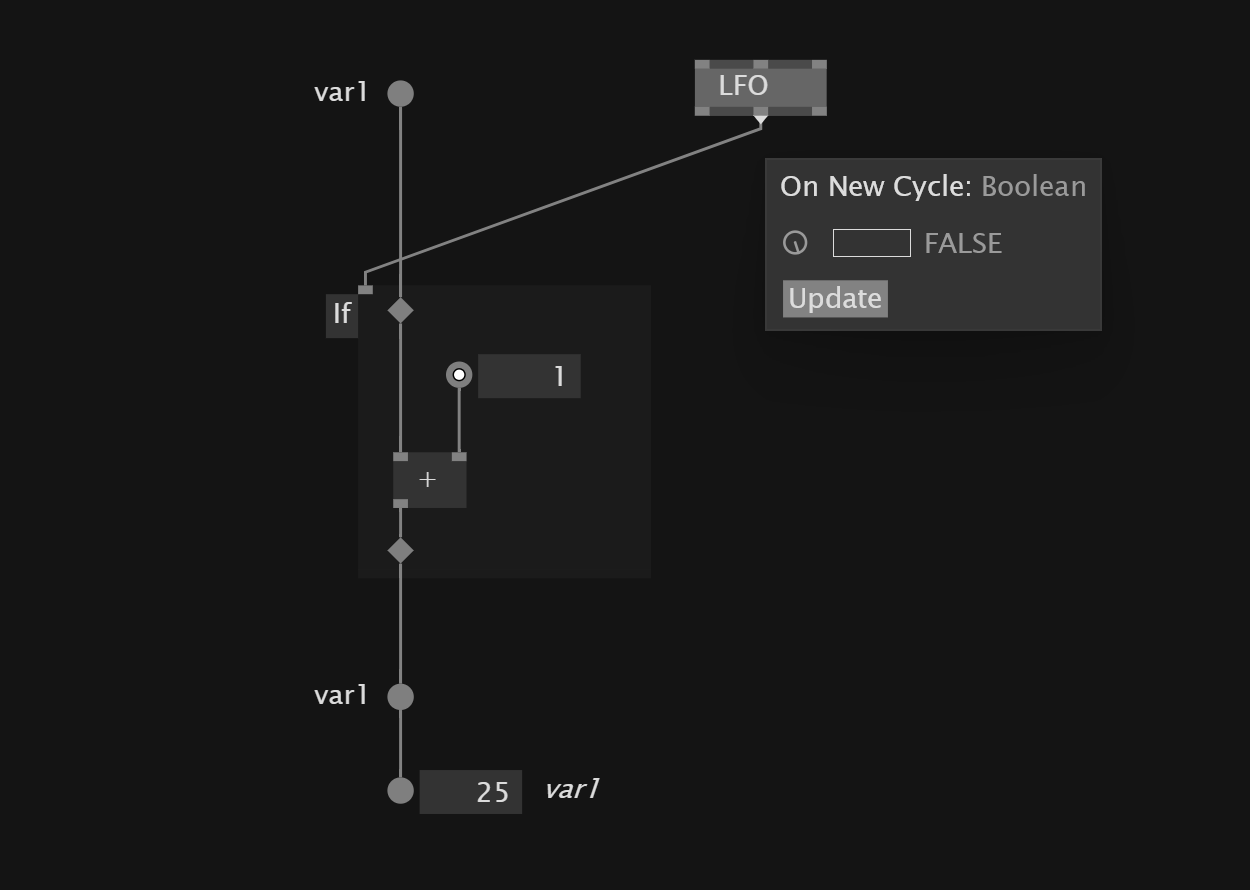

If Regions are a good way to change the data when a condition is met.

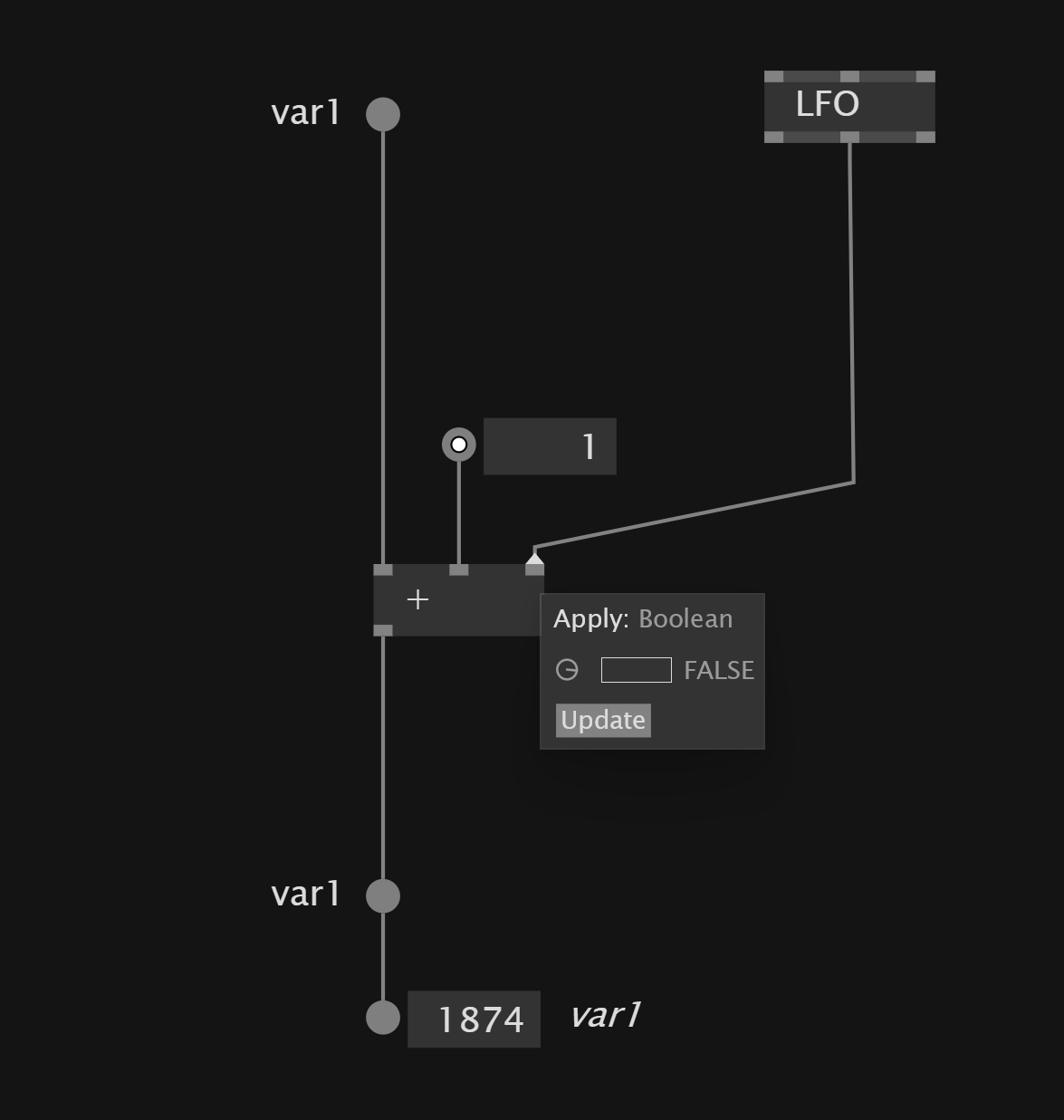

Another cleaner way to get the same effect but without the region we can make use of the Apply Pin that most of the nodes have. This input is hidden so we need to set it in the nodes Configure menu.

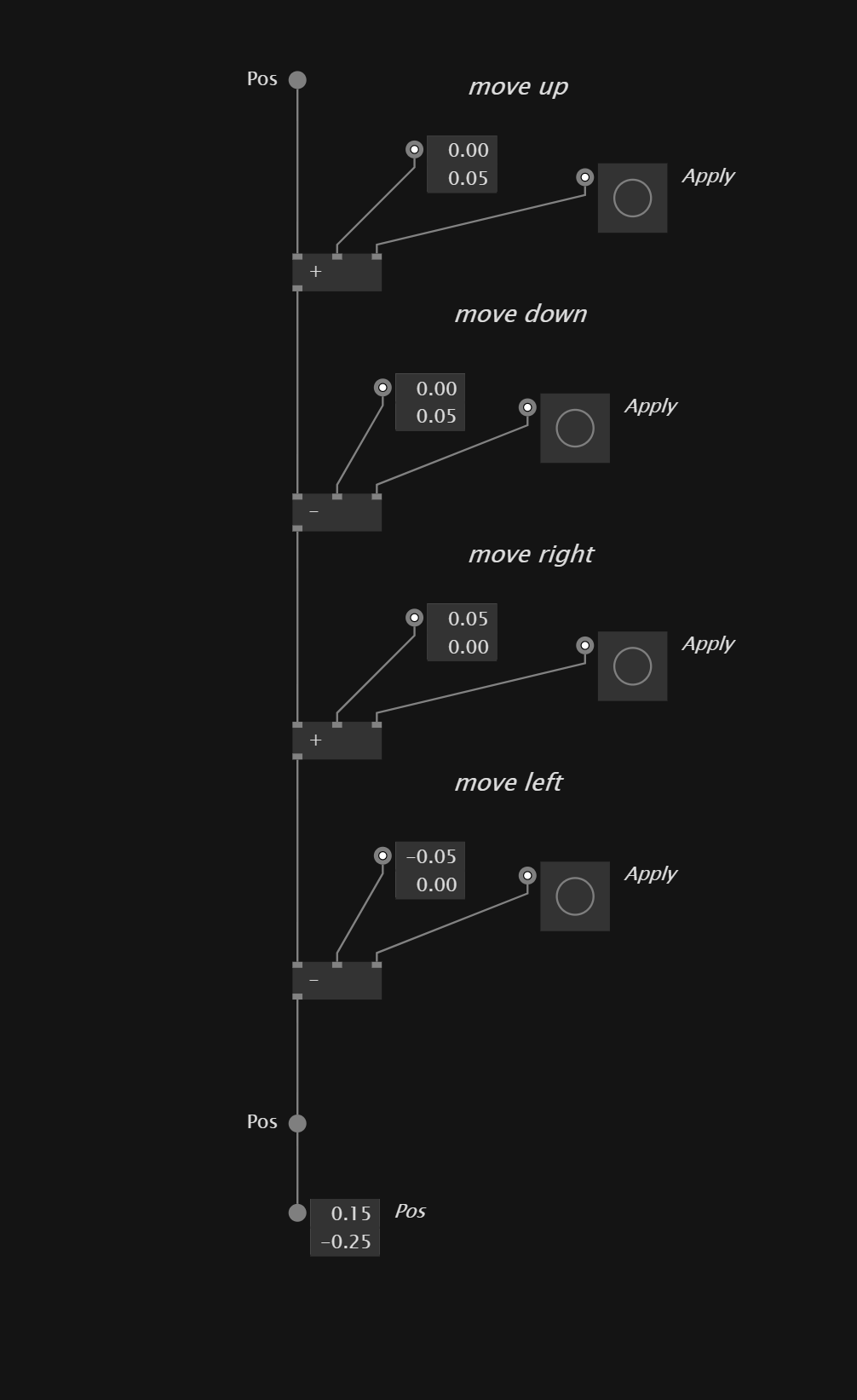

So we for example can create a Pad for the position of an object and then manipulate the position if a condition is true.
Adaptive vs Predefined
We can use pads in two ways. We ether define a Pad in the Configure Menu. This means everything in the links is predefined.
Another way is to define the data type of the Pad adaptively so by the nodes in between the pads. This is a more flexible approach.
Record
When you want that the Record is not recreated every frame but lives inside the patch for a longer time we store the Record in a Pad.
Pad is where things live in for a longer time.
