Skia

In VVVV Skia is the build-in 2D rendering library. Skia pack needs to be activated in the node browser on start.

We output our final composition with the Renderer node. It takes a layer input of all 2D content.

2D Primitives

Skia provides some basic 2D primitives to draw - Rectangle - RoundRectangle - Circle - Polygon - allows to draw shapes from a multi point input - good to draw a data line with polygon - Spiral - DrawImage - Segment

Segment

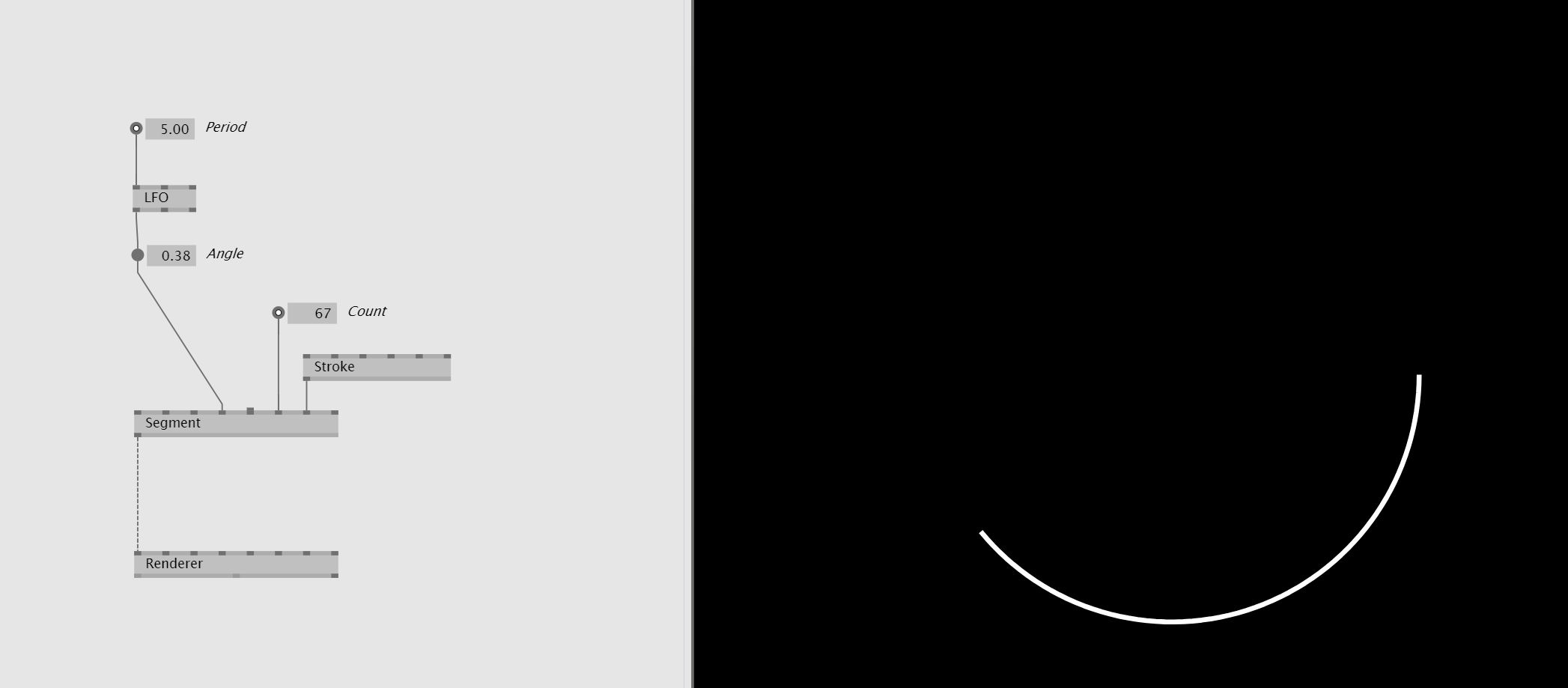

Segment node is versatile node that for example allow to draw half circles and more.

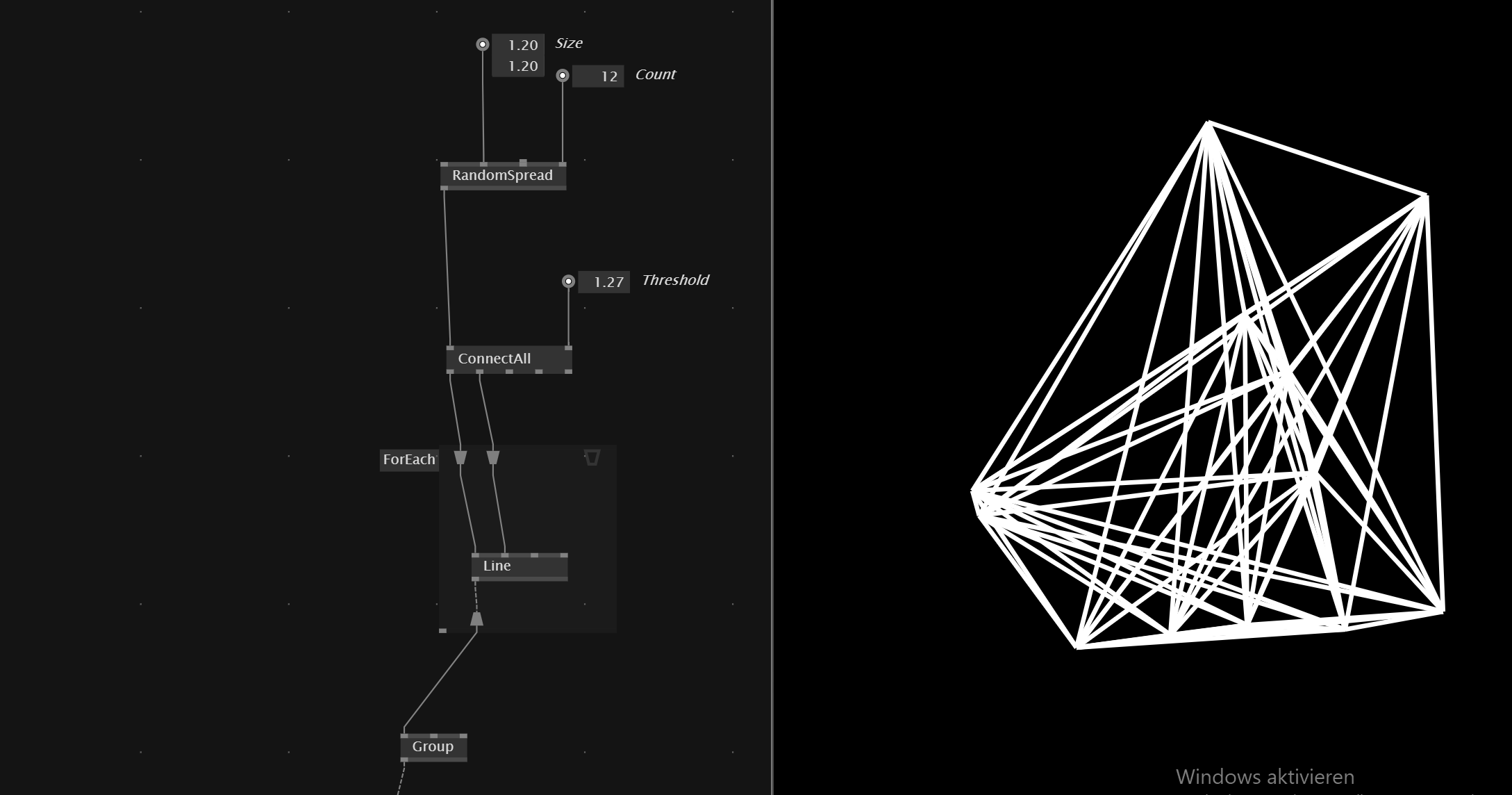

ConnectAll Points by Line

We can use ConnectAll node to get the from and to values from the line that connect two points. These we then can plug into a Line node to actually draw the line.

Draw shape from spread of points

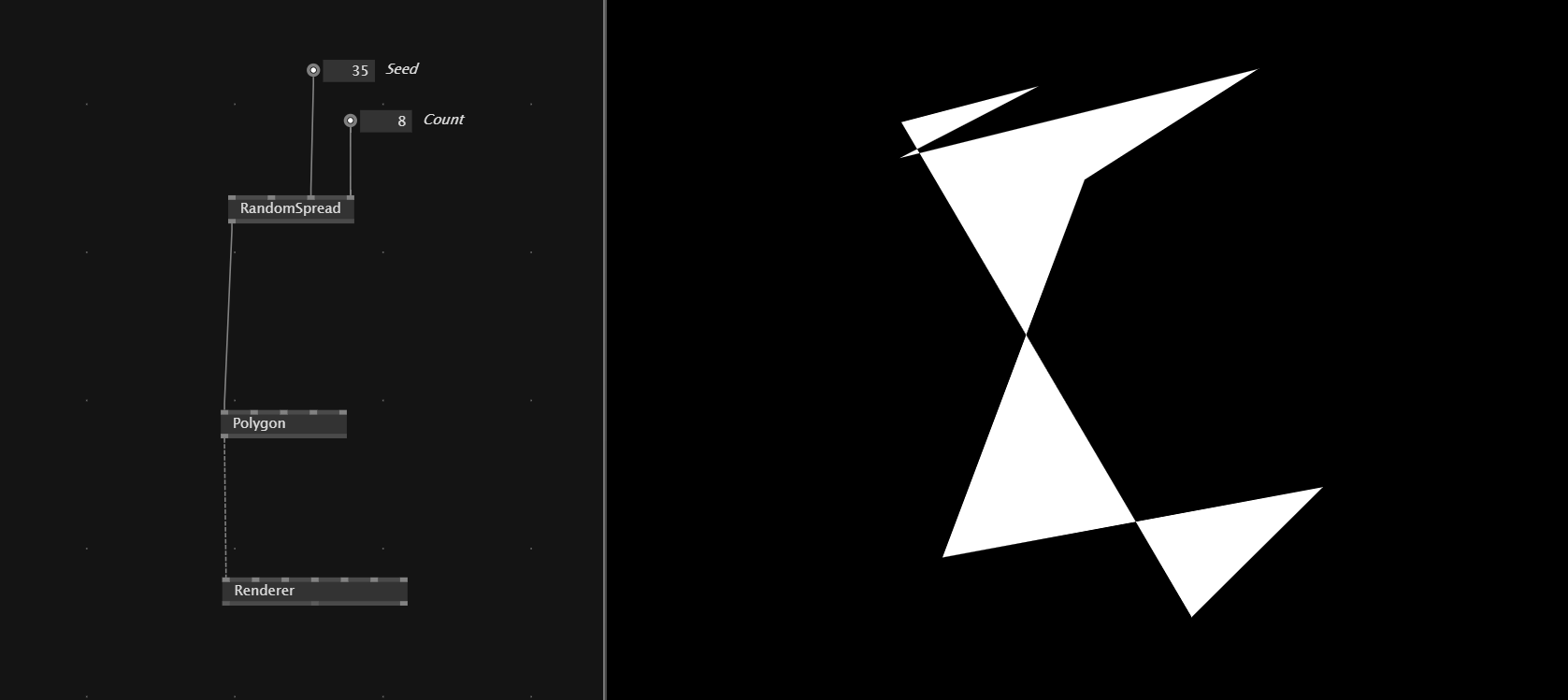

We can use Polygon Node to draw a shape of points from the spread.

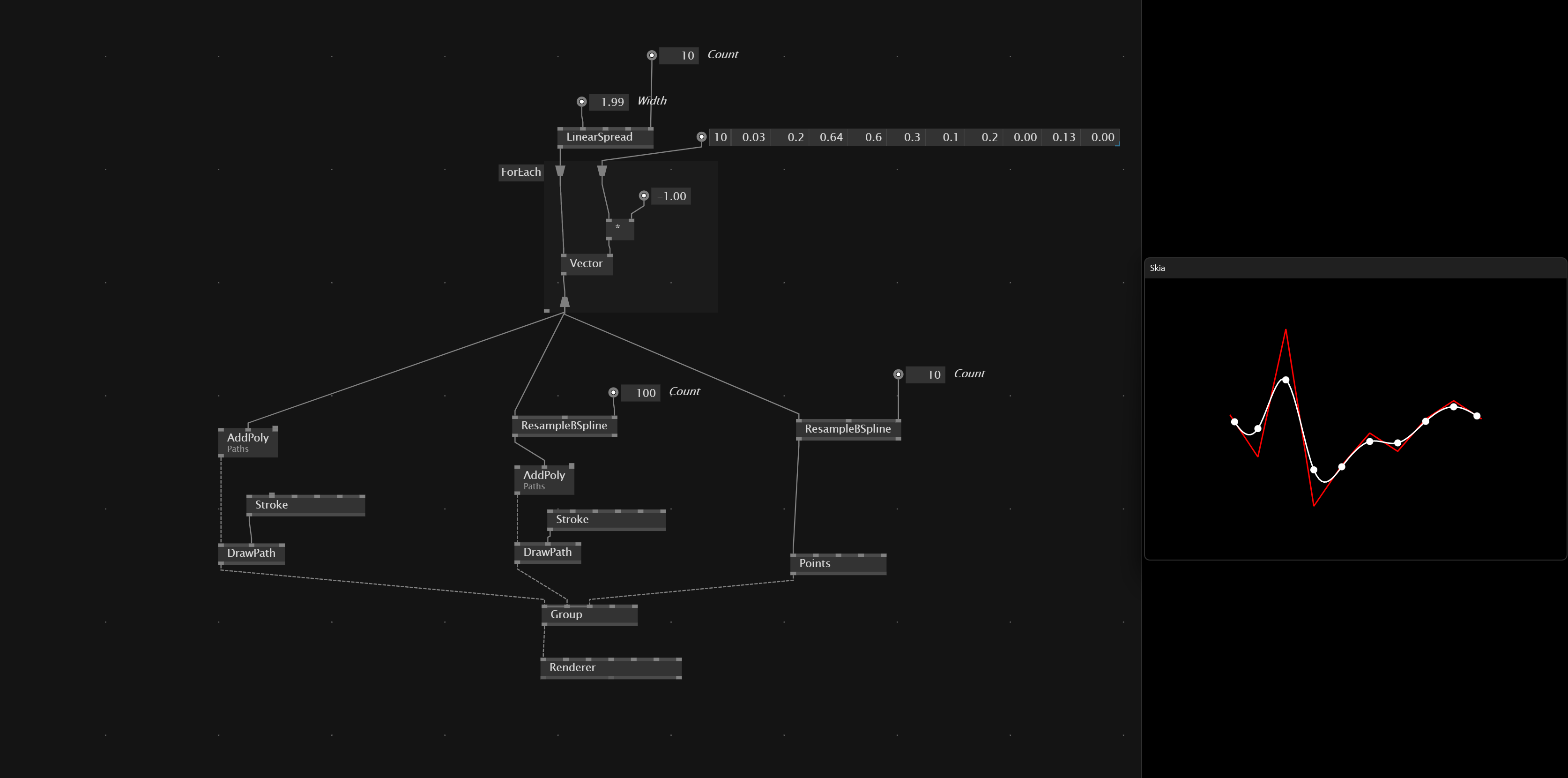

Draw a path from spread

If we want to draw a path from a spread we can path the spread values into a AddPoly(Path) node and then connect it with a DrawPath node. Check the Close input to set if the path should be closed or not.

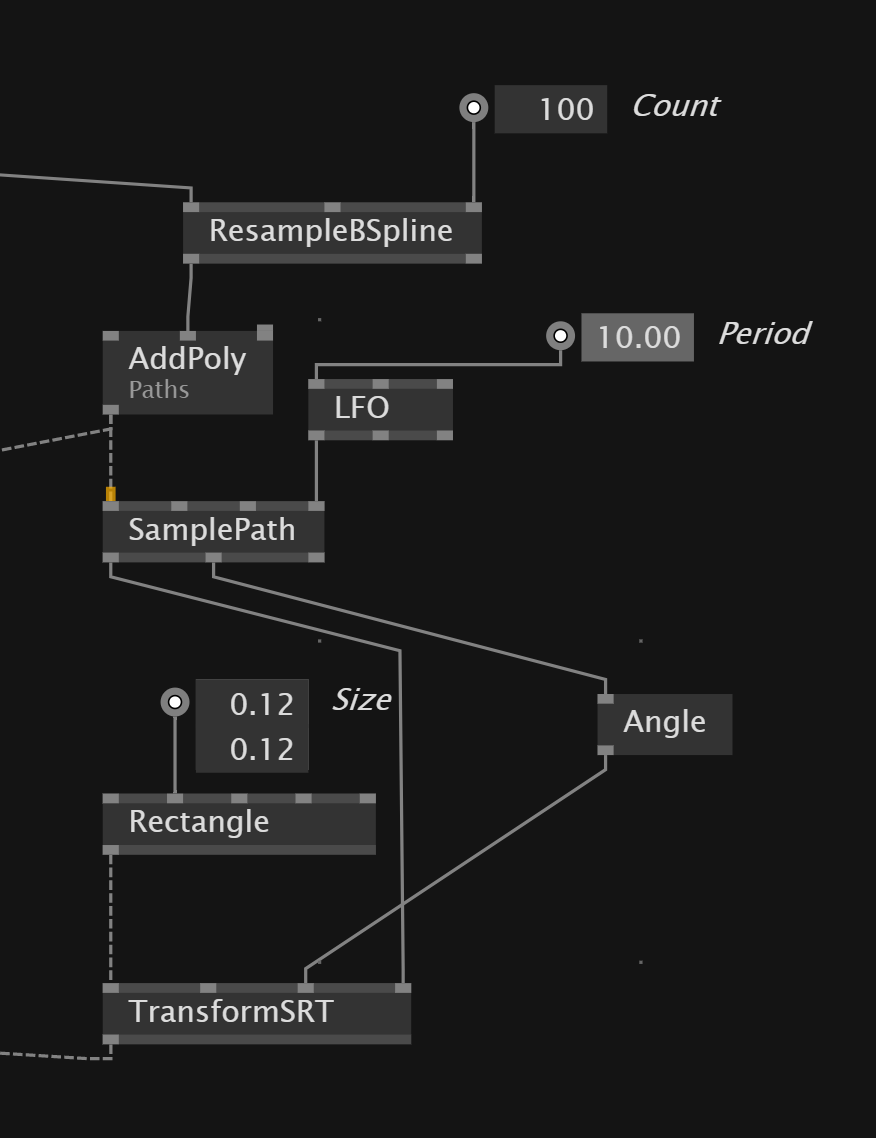

Move object along a path

The SamplePath node samples the path and allows us to move an object along a path. It also gives aus the tangent at the current position on the path which we can use to rotate the object along the path.

Data types

• Layer - Layer to be rendered
• SkiaPaint - change the look
• SKImage/SKPicture - Image formats

Paint/Style

The SkiaPaint property defines how a 2D primitive gets drawn

With Stroke we draw an outline and with Fill we can fill the primitive.

Transform

With the TransformSRT(Skia) node we can apply Rotation,Scale,Translation transformation. It applies the transformations relative to the center of the object. If we want to transform relative to an anchor point different from the center we can use TransformSRT(Center).

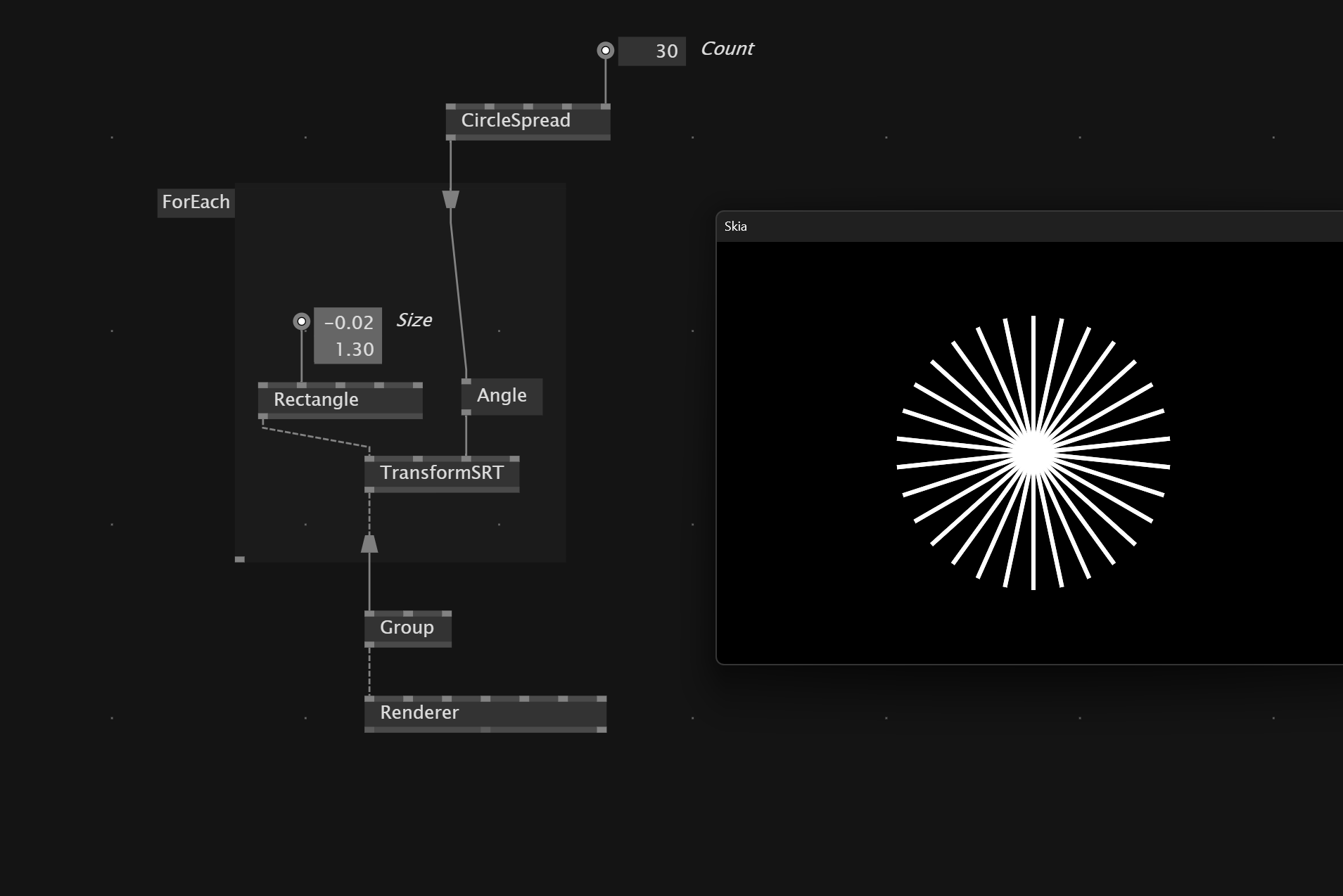

Rotate Shapes on circle

If we want to position shapes on a circular shape and then rotate each element towards the center we can use CircleSpread and then use the position and convert it into a rotation with an Angle node.

Chaining transformations

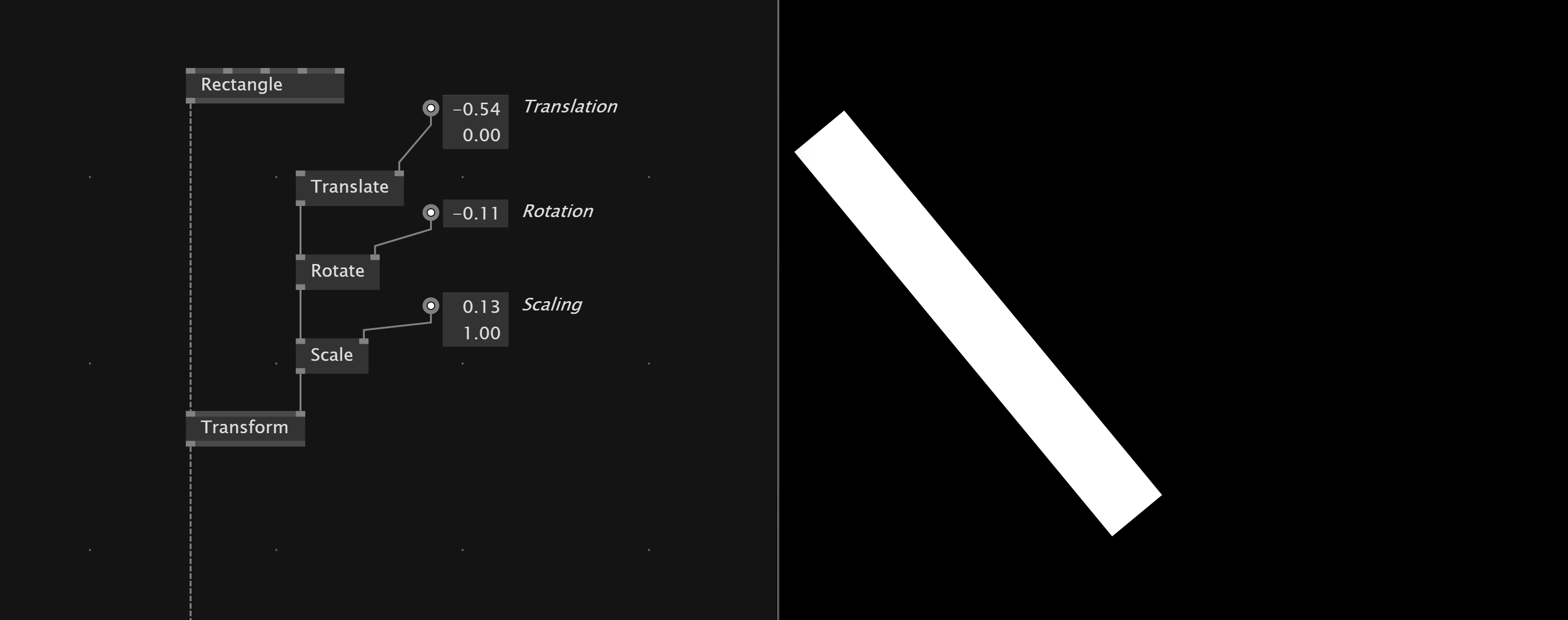

We also have each individual transformation as a node available Translate Rotate Scale We can chain them and then input them into a Transform node.

A different order results in different transformations.

Group

To join multiple layers we use the Group node to bring them together. First input is the layer most in the back.

With CTRL +/- we can create more or less inputs in to the node.

Group spread of elements

After a Loop we get a spread of layers. With a Group(Spectral) node we can convert the spread into a single layer.

Blend modes

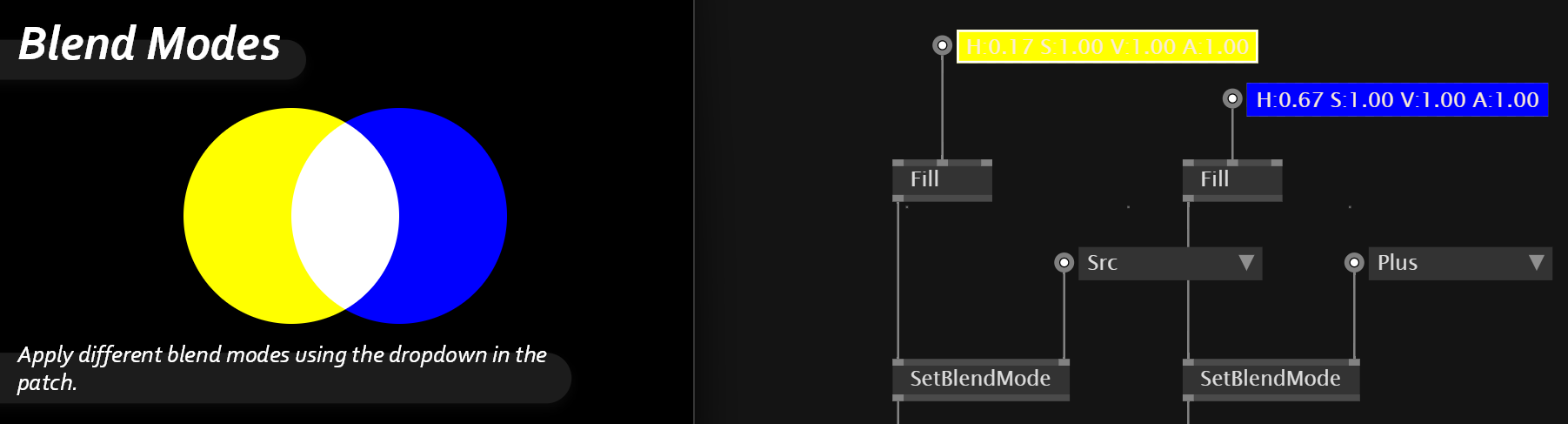

We can set SetBlendMode node between the primitive and Paint nodes to define how layers get blended.

Images

To draw images and svgs in Skia it uses the data types SKImage and SkPicture.

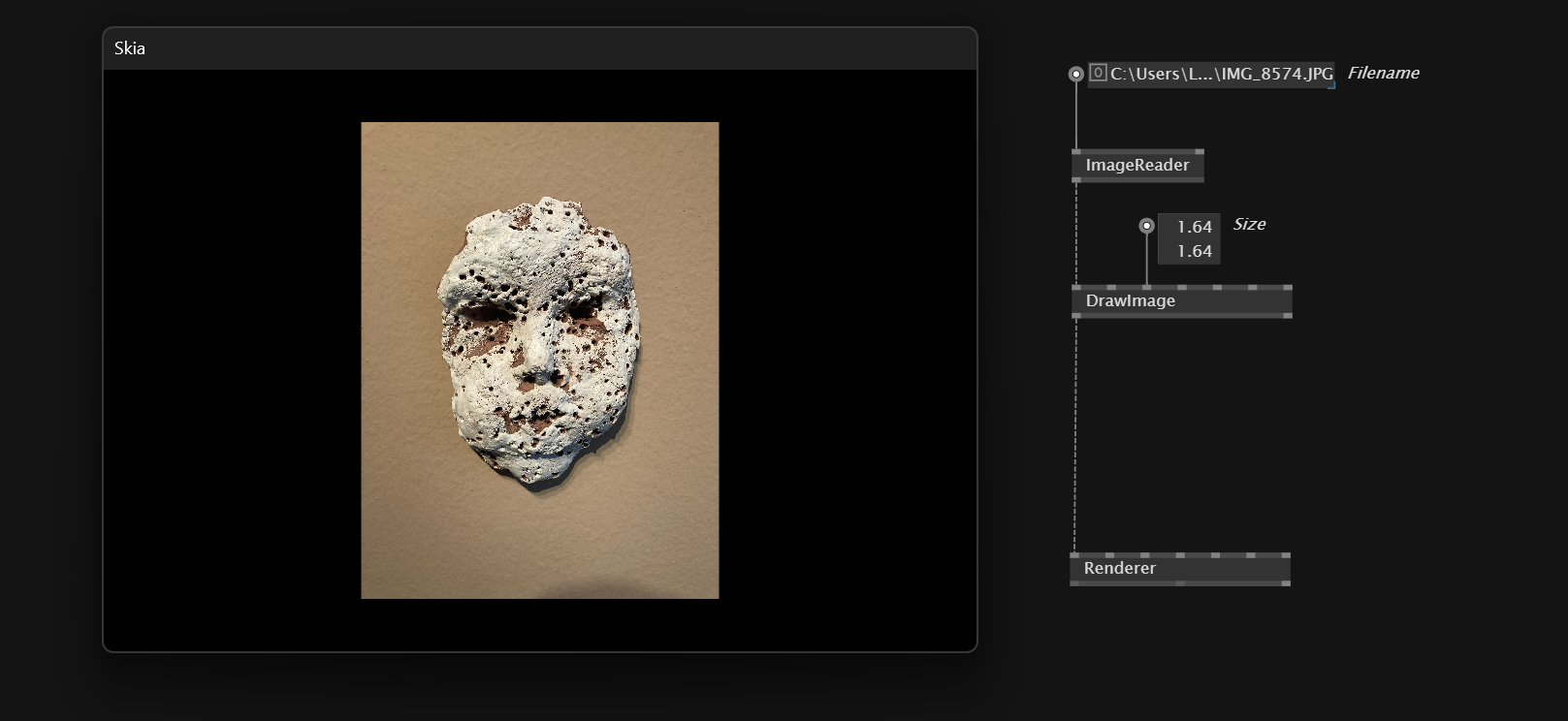

To get the image from a path we use a ImageReader and plug it into DrawImage node.

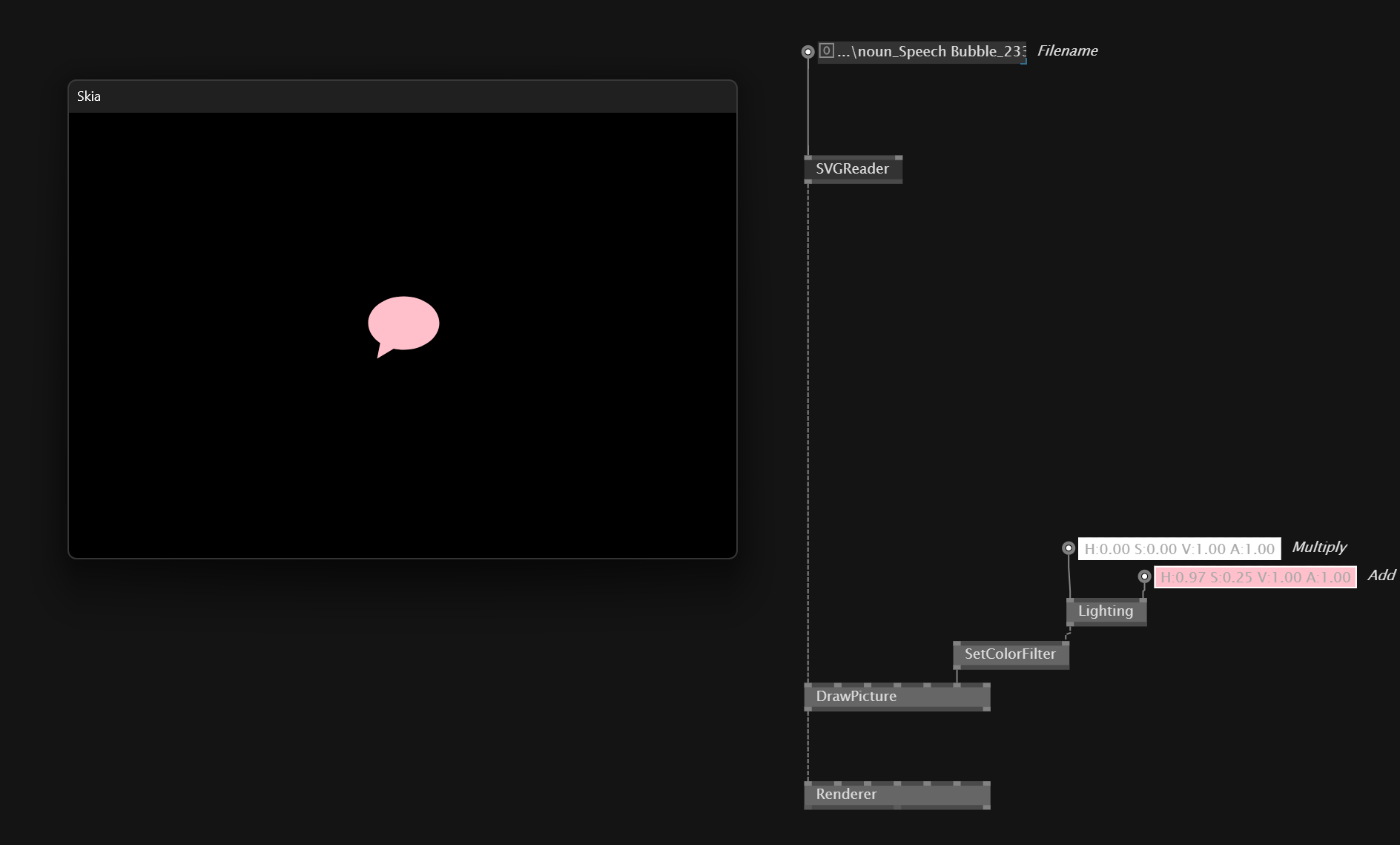

To load SVGS we need the SVGReader and to draw the DrawPicture

Adding a ColorFilter with Lighting allows us to fill the svg with another color.

Lighting multiplies RGB Channels by one color and then adds second color.

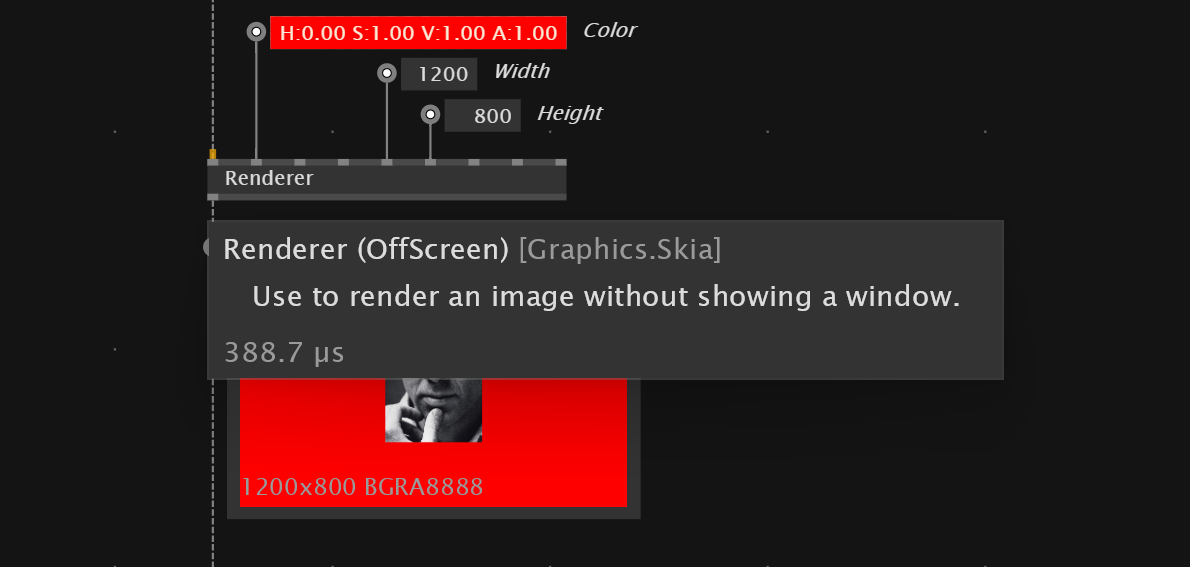

Skia allows us to also Render compositions off screen and allow us then to use the render as a data type SKImage. The render is then not shown in a window.

We then can also save the render into a file with ImageWriter node. It allows us to set the path, file format quality and has a boolean to set to write

More infos here

Mixing Skia & Stride

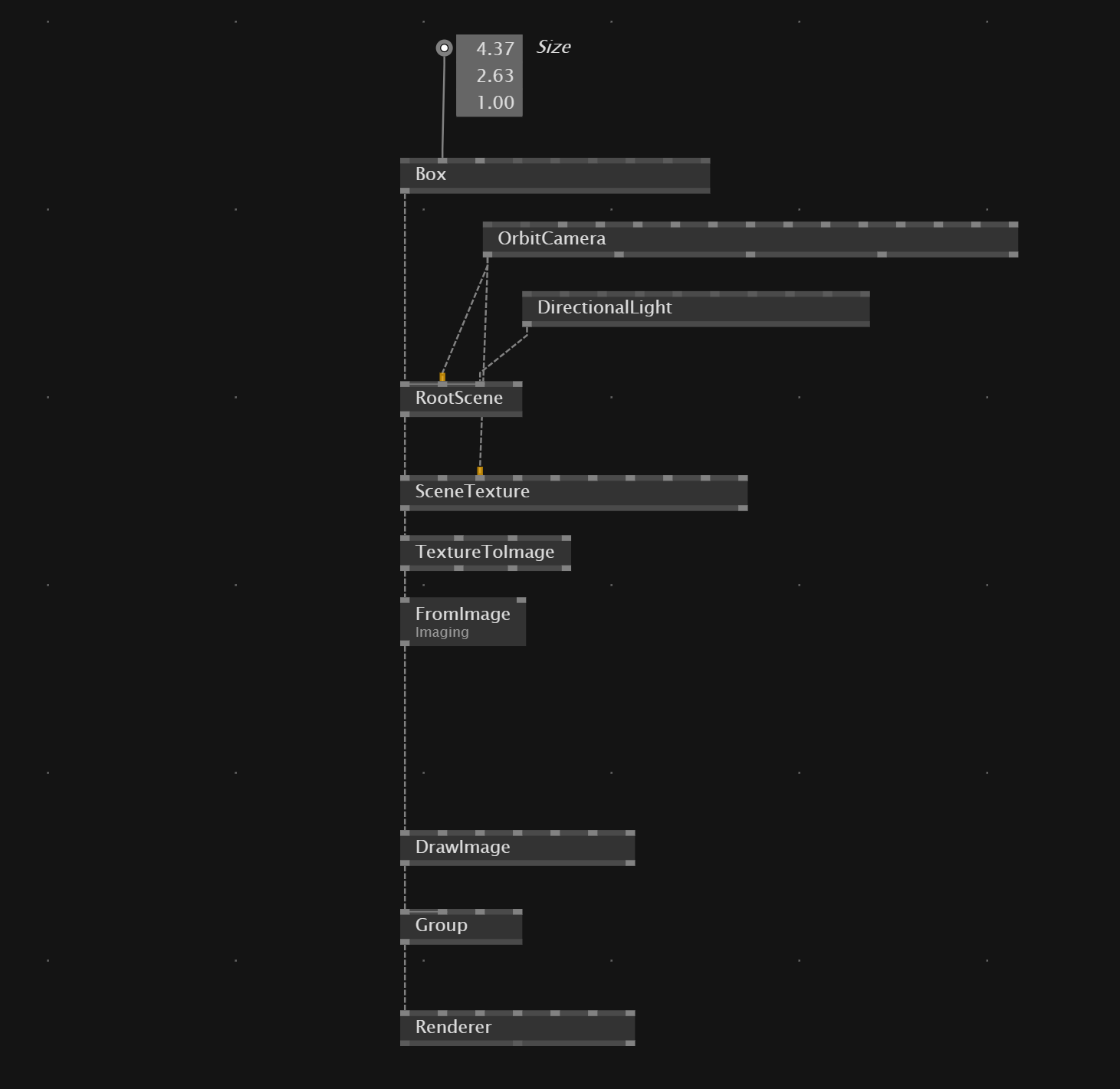

To convert Stride into Skia we need to connect RootScene into a SceneTexture node and then connect the SceneTexture with TextureToImage and FromImage(Imaging)

Videos

To draw videos in vvvv we need to reference the VL.Video package in the help browser.

We then can use the VideoIn or the VideoPlayer.Both return IVideoSource data type that needs to be converted with VideoSourceToSKImage

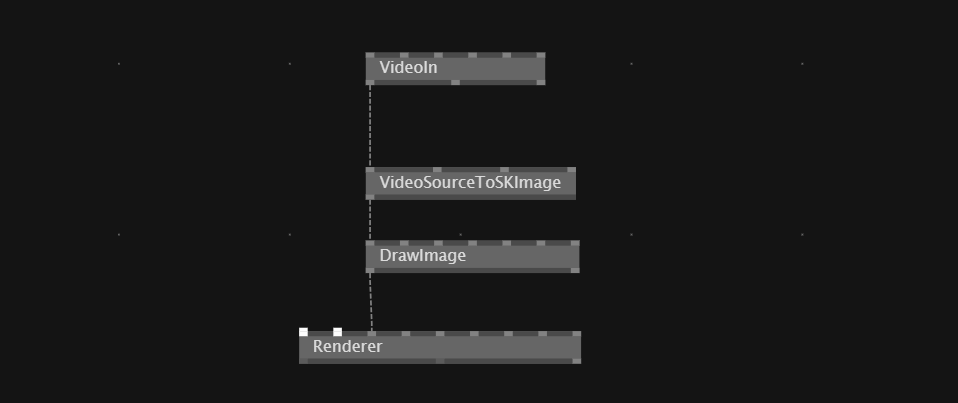

To draw your camera input we need to connect VideoIn node into a VideoSourceToSKImage and then connect it with the DrawImage node.

With CameraControls we can set values like Pan,Exposure,Zoom etc.

To show a video we can use VideoPlayer node, ether to show video from a url or to show a video from our computer.

Draw a drop shadow

To draw a drop shadow we can add Image Filter with DropShadow node to the primitive.

Create Shiny effect

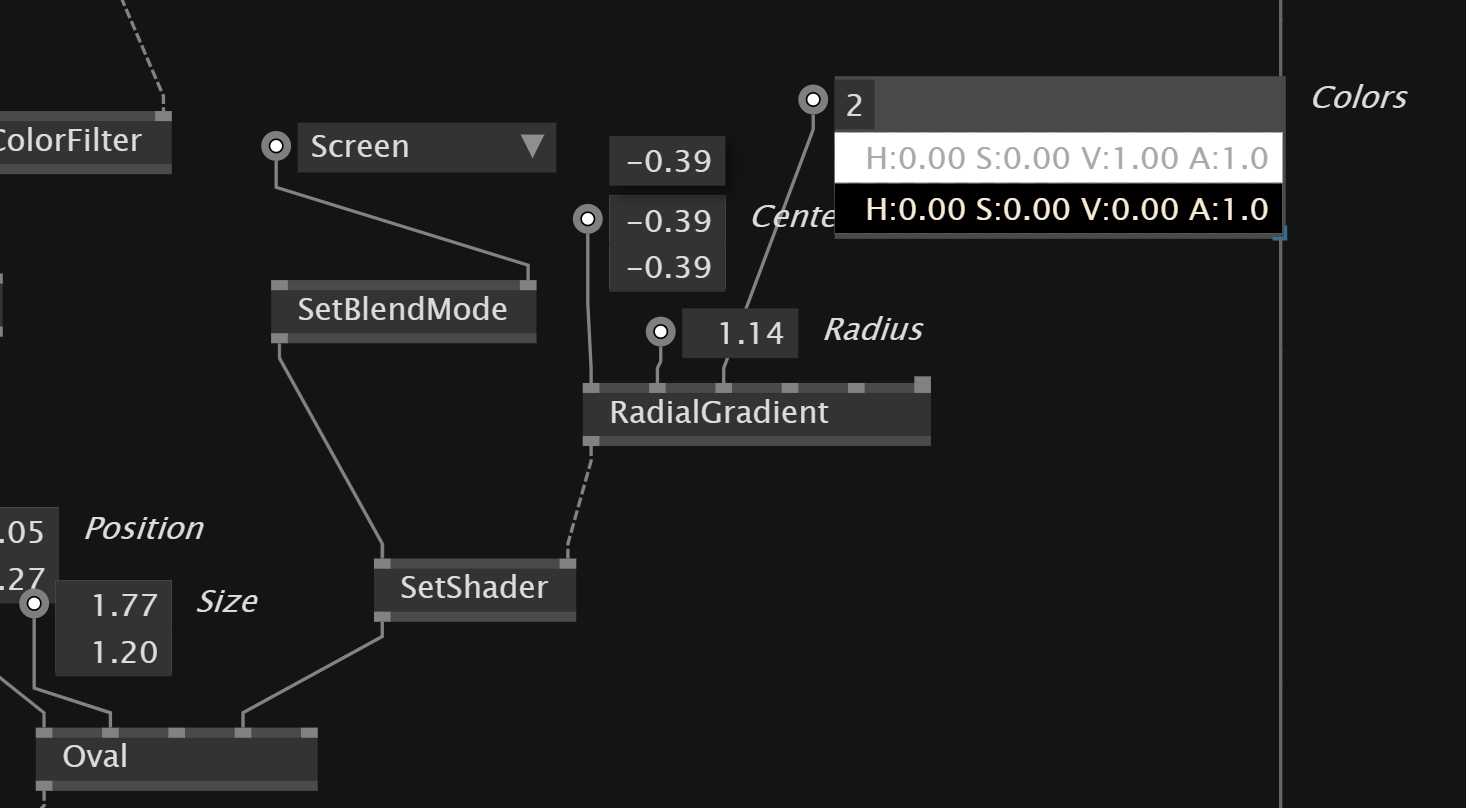

For shiny effects we add a SetShader and a Radial Gradientnode. To make the it only apply the bright colors we can set a SetBlendMode

Camera

In Skia we also have a Camera node which allows us to navigate through the Skia Window but it also allows us to set a fixed view position with its parameters.

Show Performance meter

With F2 we can show the performance of our sketch
