Object oriented programming
A patch in VVVV has two parts: - Application side (front) - Definition side (back)
Definitions allow us to store our own custom data types, nodes and operations to manipulate data in the patch. We can ether have all the definitions in our one patch or keep them in another file. See Set Dependency in other File
In VL Process,Record and Class are similar to a blueprint or template. They define: - What properties(data) something can have - What operations(behaviors) can be performed.
When you make an instance of them you create a real, usable object based on that blueprint.
When you create your own data type you are using Reference Types. Value Types are like integer,boolean,string etc. that only contain the value.
Every data type is not just a VL.object but also an IVL.object. We can check of the identity of that object with the advanced node Identity(IVLObject)
Process Node
When we create our own Node in the Node browser we generate a so called Process Node.
The Process Node is taking care of creating and updating the thing. It is incapsulating a living thing with a state.

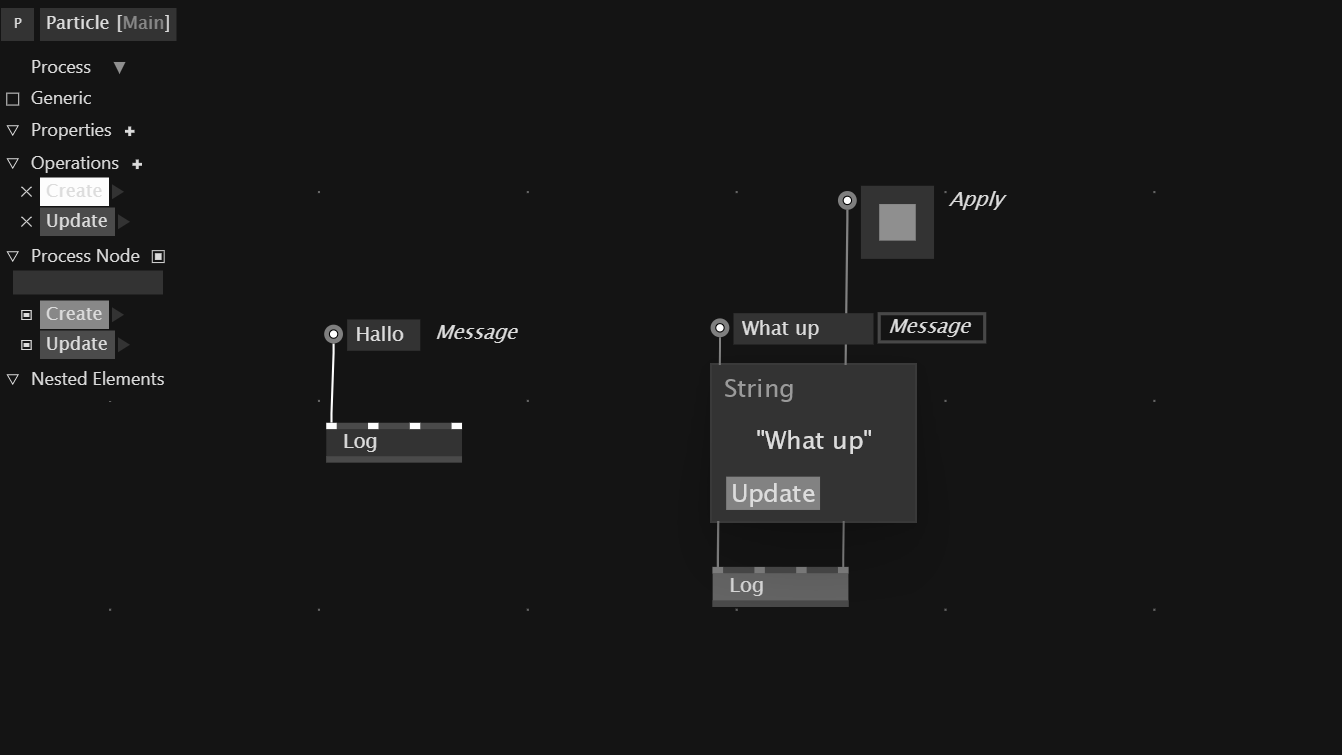

The Process Node has an Update function/Operation that get's called when the Node is in your patch.
It also has a Create Operation that get's called one time when the Node is created.

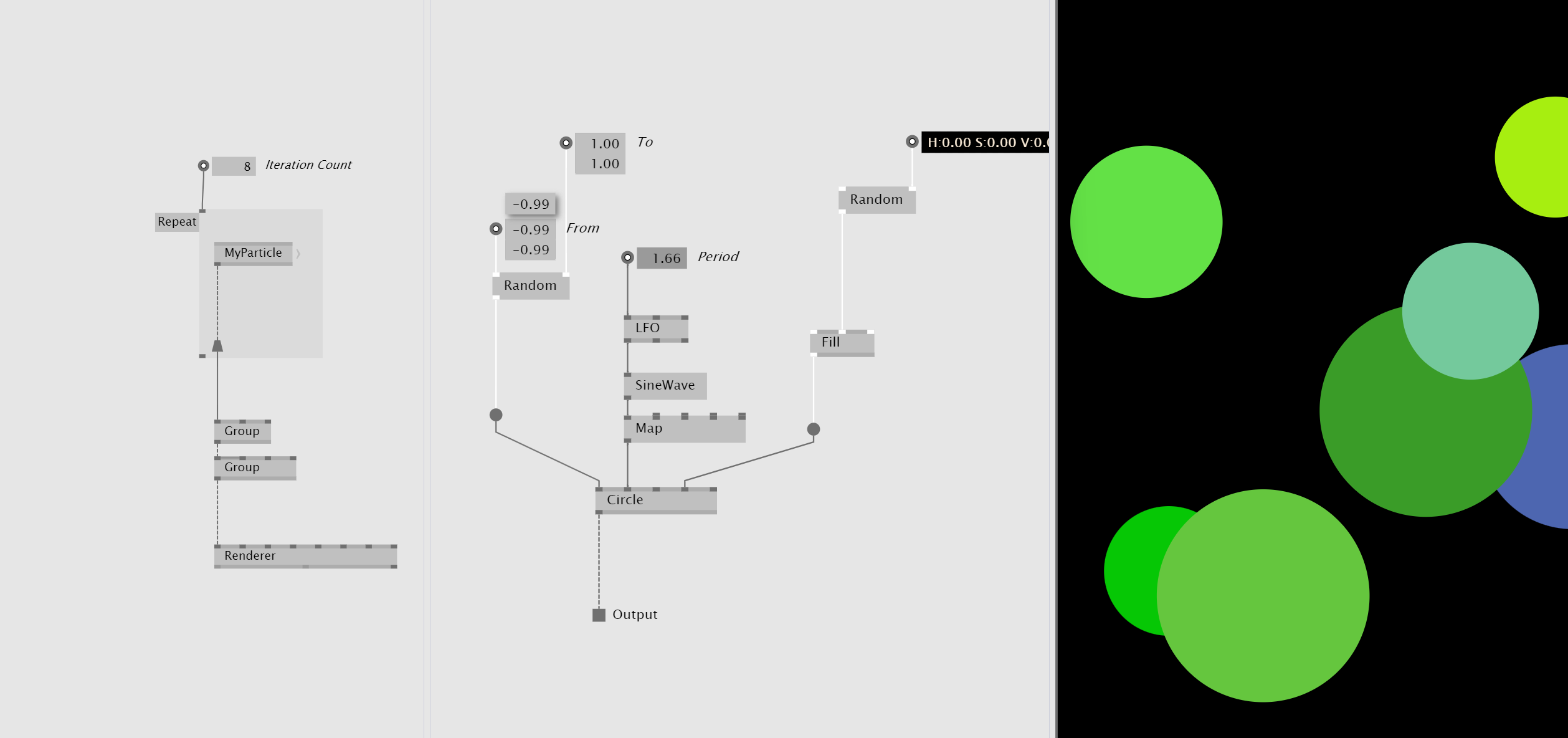

In the repeat every time we change the iteration count a new instance of the object is created or an old one is deleted.
So the Process Node first executes Create when it is created and then keeps on running Update of the lifetime of the node.
The Process comes to life when it is placed in the patch or when the patch is loaded / re-started.
The Process Node is stored on the Definition Side of the patch.
Generally a Process is a wrapper when you want to group functionality in a subpatch together. We use it to structure the patch. In the background a Process is ether a Record or a Class.
In some cases you also can execute the Update function of an object on the Create operation. For example you want to Update the state of object on the creation of the the patch.
Operations in Process Node
Create your own operation
we have to call the operation with the node of the name of
Update word is reserved - it gets executed every frame
The Pad is there to hold the information of data between the operations.
Use our custom operations in the patch
Process as a data type
A Process represents on instance/object of a data type and works independently.
Create Process node on definition side
Go to Defintion side by: click file name -> Definitions or ALT-shift-a Node browser -> Process -> Pick name
Patch Explorer
Every Process Node has it's own Patch Explorer where Properties, Operations, etc of the Node get shown.
You can show these by clicking the P button on the top left corner.
Assign Operations to Logic
When we have logic or program flow that we only want to execute on Create or Update we can assign these operations to the flows by right click link -> Assign -> create/update.
When you hover over the I/O Box you can see which operation is assigned.

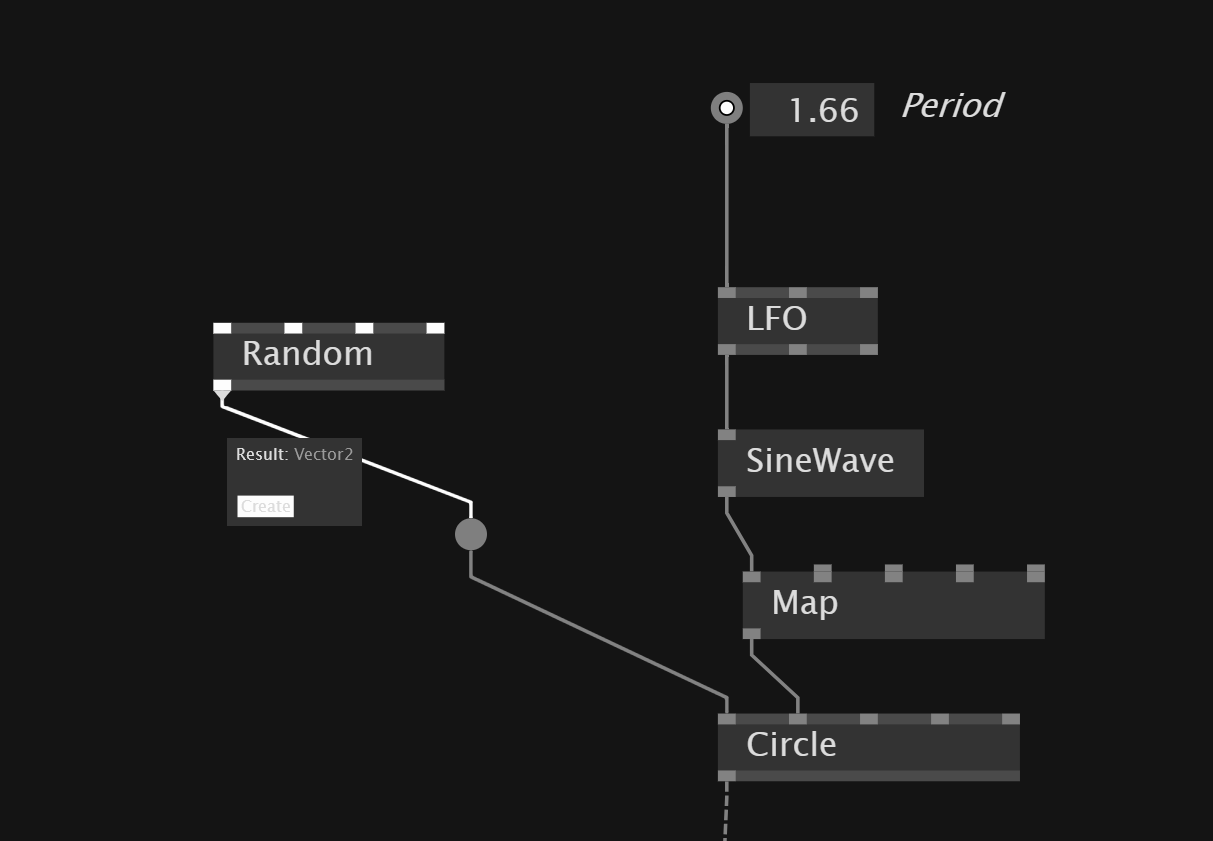

Now when you want a separation of the nodes that execute on Create and on Update, so that the update flow continues running we create a Boundary with a Pad.
So every time the patch starts, Create is called -> a random value for the Circle position.
Have Operations available but not exposing them
By clicking the squared next to the process node operations we can say which operations are available on the node outside.
Record data type
Record is a datatype that can get created and destroyed dynamically during runtime. This makes them ideal for example for using them for Particles that get created dynamically.
They are like a Process Node. But Records are not offering a node, they give you the operations of the data type.
Using the Create Operation of the Record in the Application side of the patch actually creates the object.
If you use Create every frame a new object get's created every frame and nothing a actually get's stored, because the object gets overwritten every frame.
Records have to be stored into a pad.
Parameters in a Record
To store information/properties in a Record we have to store it in a Pad Node. These properties need a type assigned. We can do it with r click configure
With CTRL + L-Click we can expose an Input/Output for the Pad.
Record as a data type
Record is an unchangeable(immutable) data type. When you modify it, a new copy with the changes get's created. Like making photocopies with edits. Or like a vinyl that can't be changed after it is pressed.
Expose Inputs and outputs of Pads in Record
ctrl +k
ctrl + left click to expose only input or output
Class
A Class is a changeable data type. When you modify an instance of a class you changing the original object itself. Like editing the original document. So we use a class when we only want one instance that is not getting created multiple times in runtime.
Classes are mutable so they can be changed, like a cassette tape that you can overwrite.
Create a class
There are multiple ways to create classes.
We can type in the class name in the node browser and then click on Class.
Another way is to create a Node with the Classname then go inside of the node and on the left top assign Class instead of Process
Objects
We also can assign the data type Object then it is not specified but something is there. Because everything is an object.
If we have our custom data types inside another custom data type it doesn't really mean that one data type only lives in there. It is just referenced in there.
