Interactions
Mouse

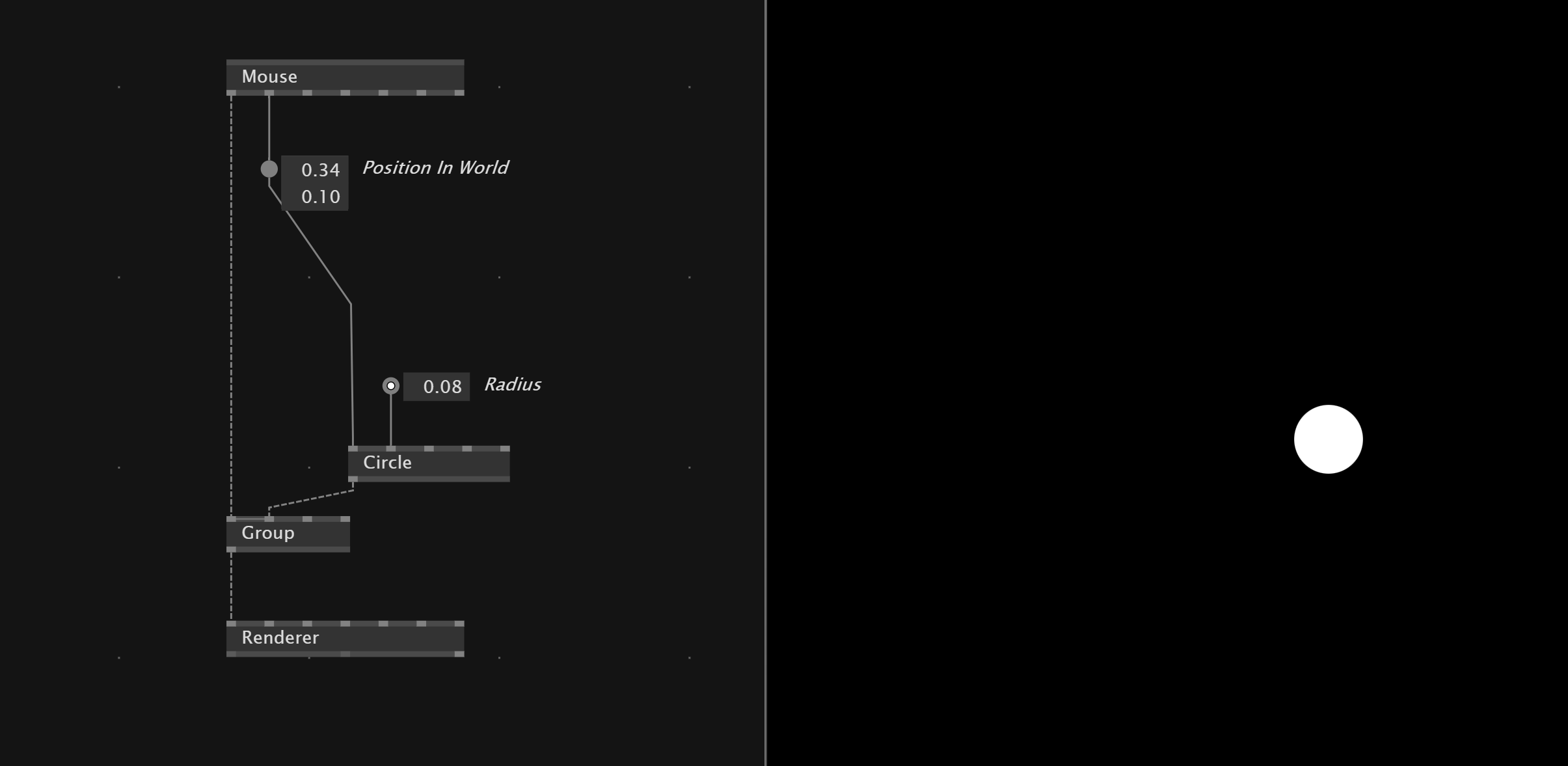

If you want to use the mouse in your patch the context output of the Mouse node need to be provided to the Renderer by adding it in a Group
The Wheel Data is the value of the mouse wheel.

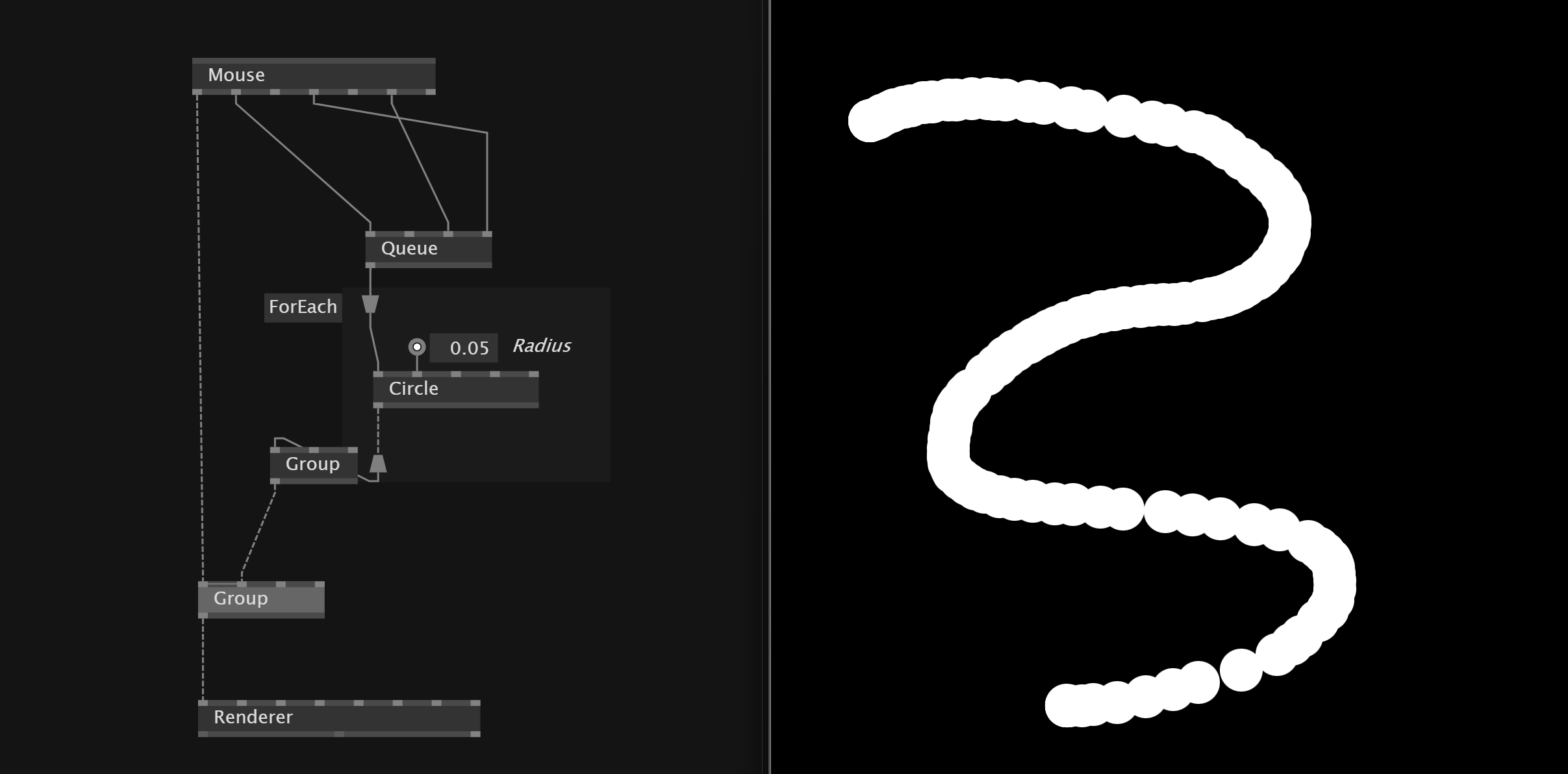

Store value in Spread when mouse is clicked
With a Queue and binding its Insert input with a mouse click we can store the values of the mouse every time the mouse is clicked similar to a drawing app.

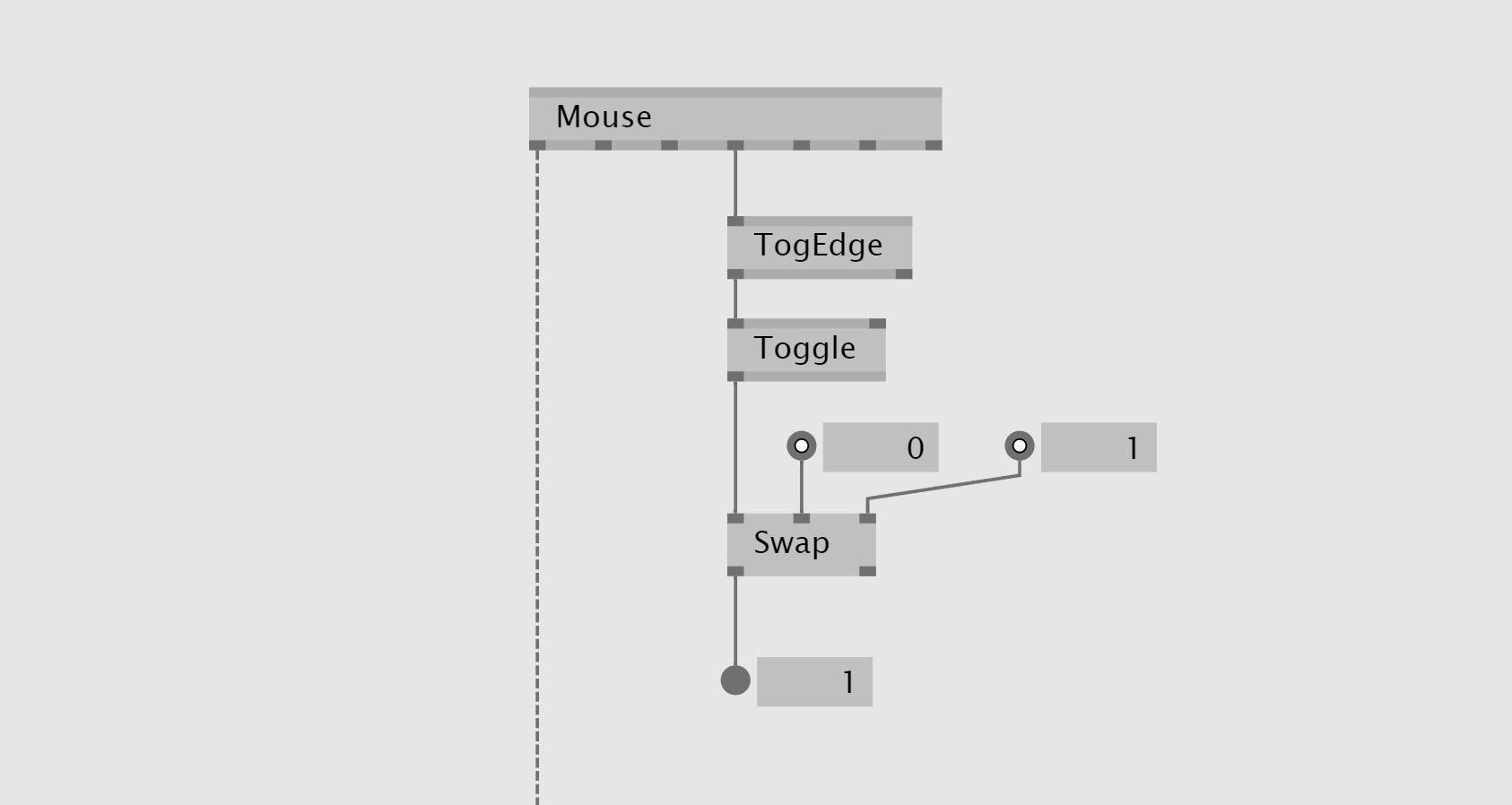

Toggle swap values on every mouse click

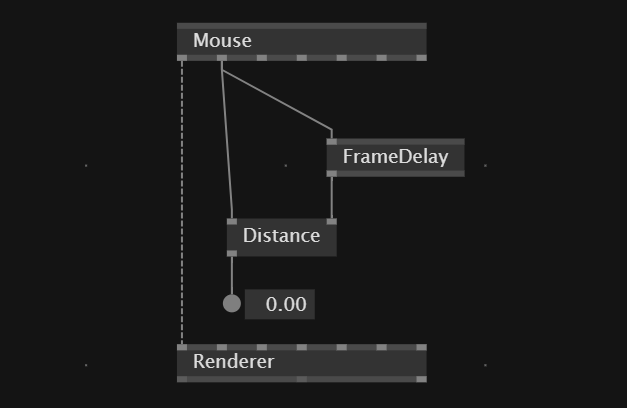

Calculate delta mouse movement

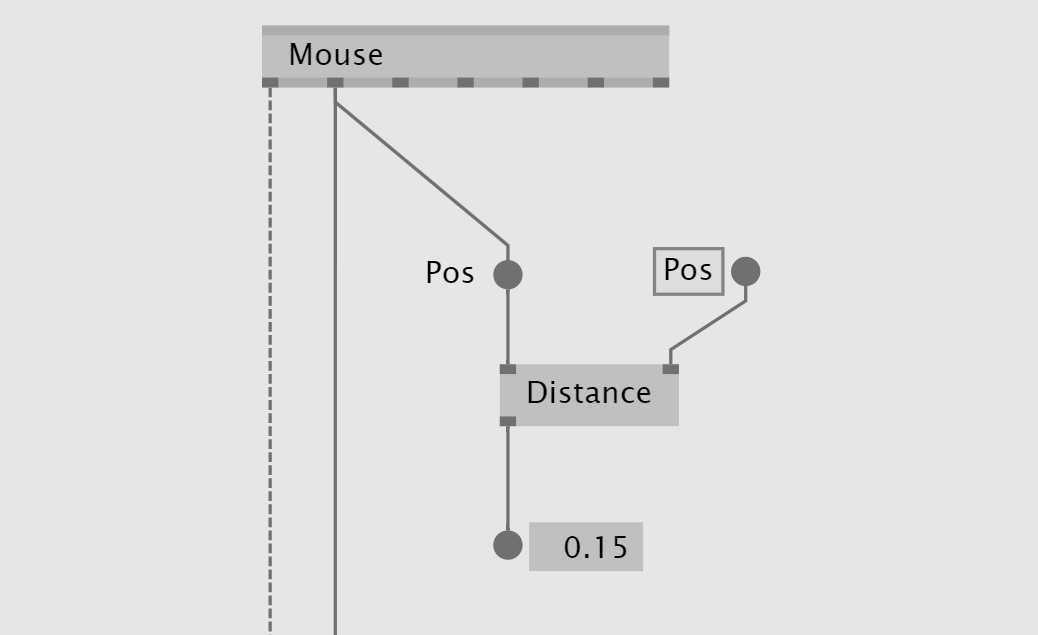

Calculate distance mouse position between frames

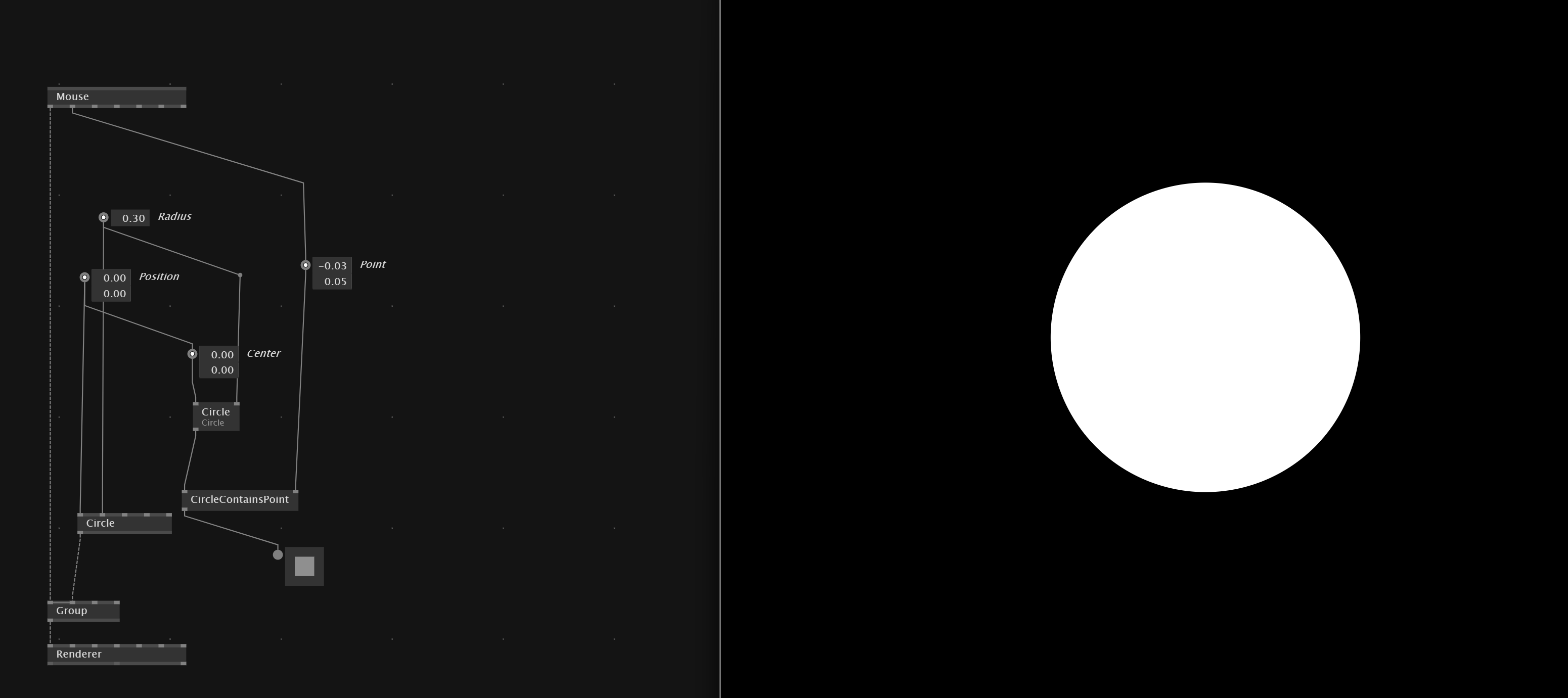

Detect if mouse is in circle in skia
==
Detect if mouse is hit
spread of elements If mouse hit the object do not keep it togedge -> if -> for each -> hittest -> not keep ==

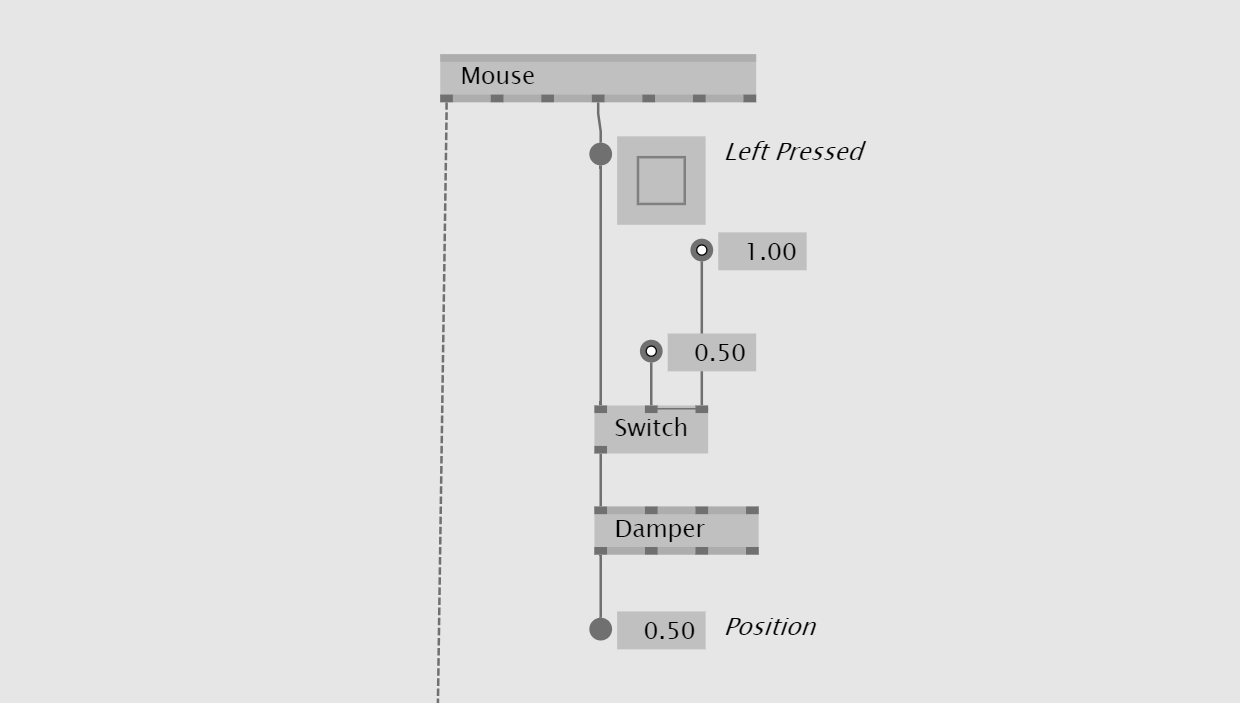

Smooth transition of value when something is clicked
Stride

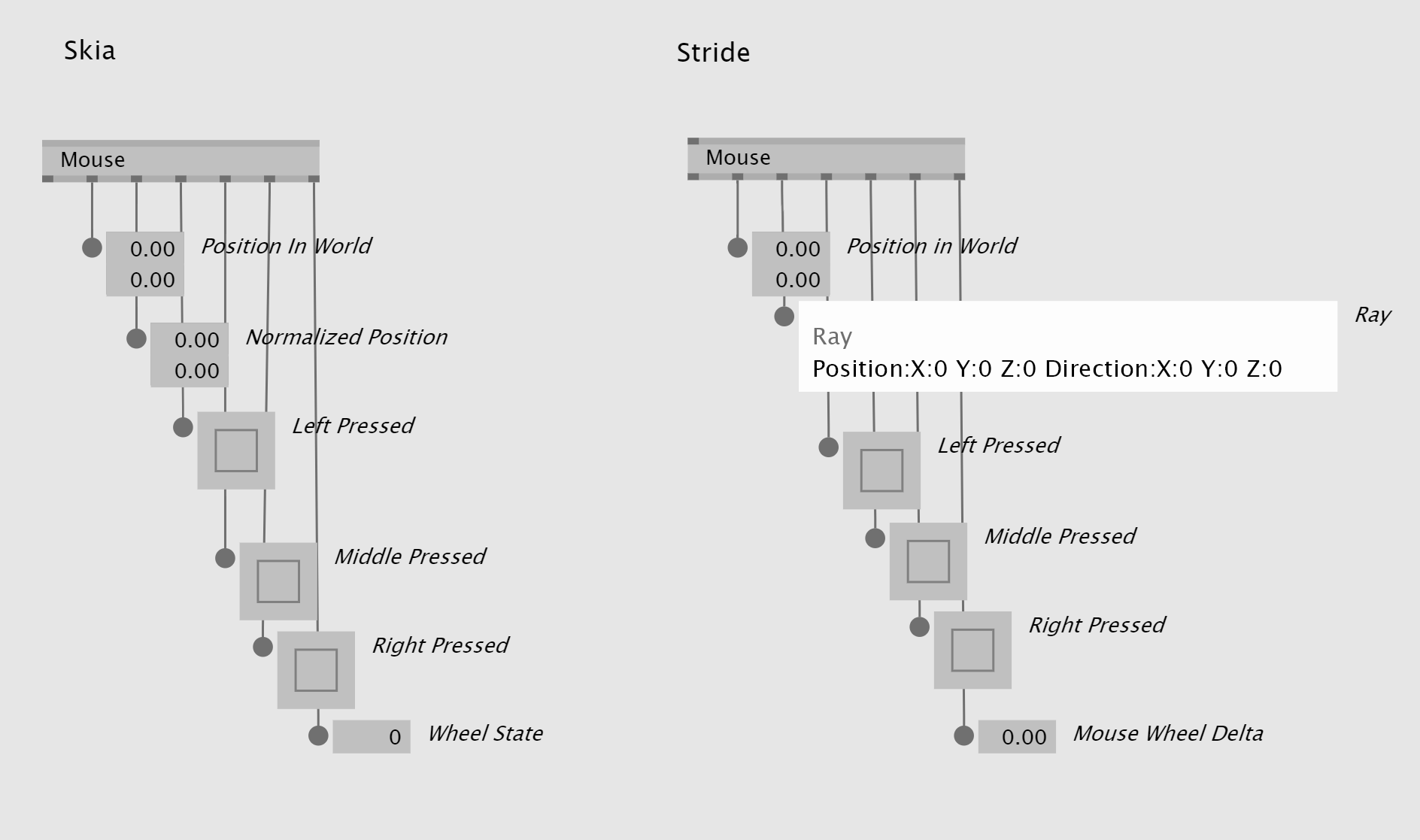

The Mouse node in Stride is not 100% the same like in Skia
Keyboard

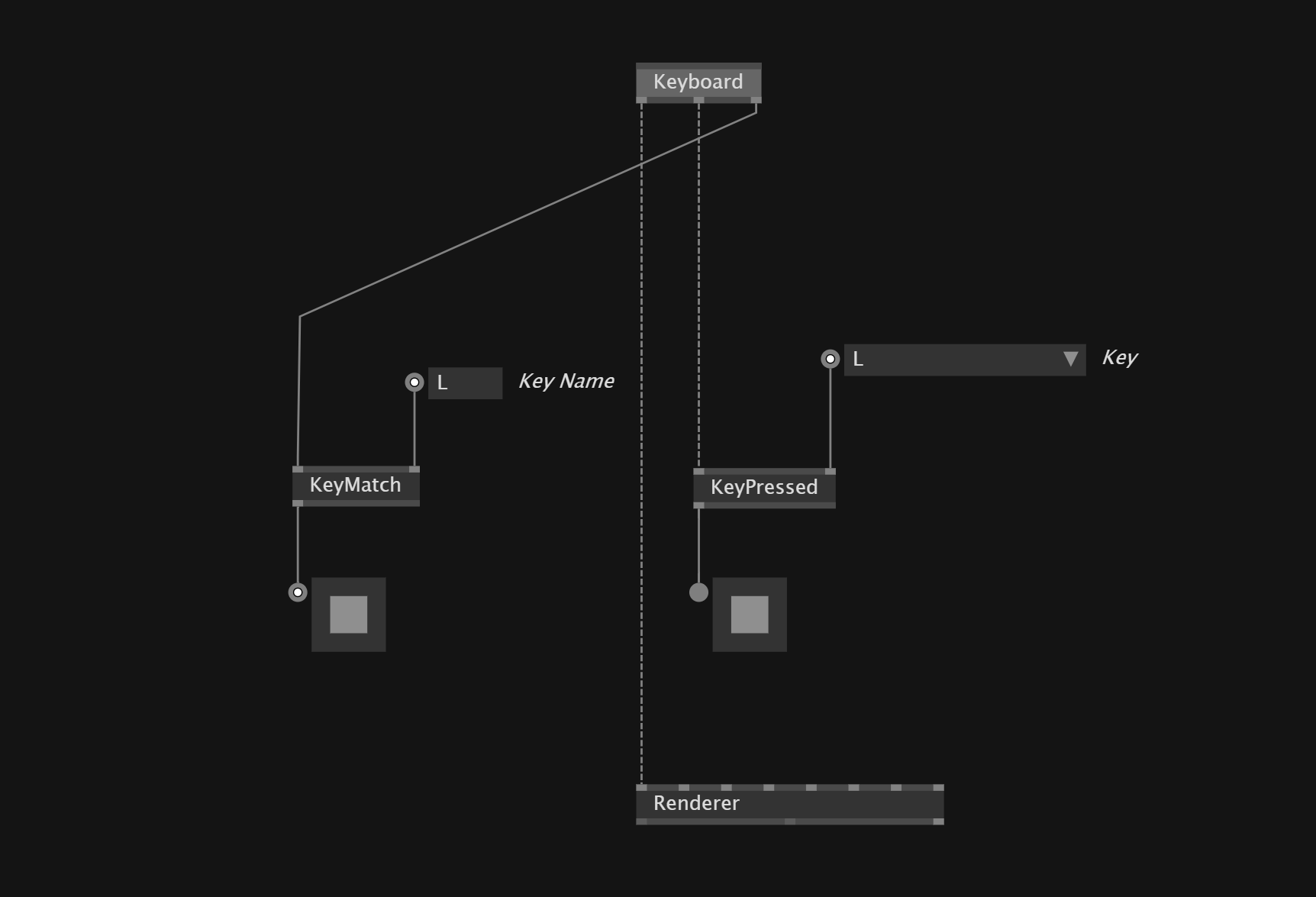

To check if a certain key got pushed we need to connect a Keyboard with KeyMatch and set the KeyName(String) input for the key we want to track. We also need to connect the Keyboard Node to a Renderer. Don't forget to set Skia or Stride dependency.
Another way is to connect KeyPressed node with the Keyboard and select the key in the IOBox.

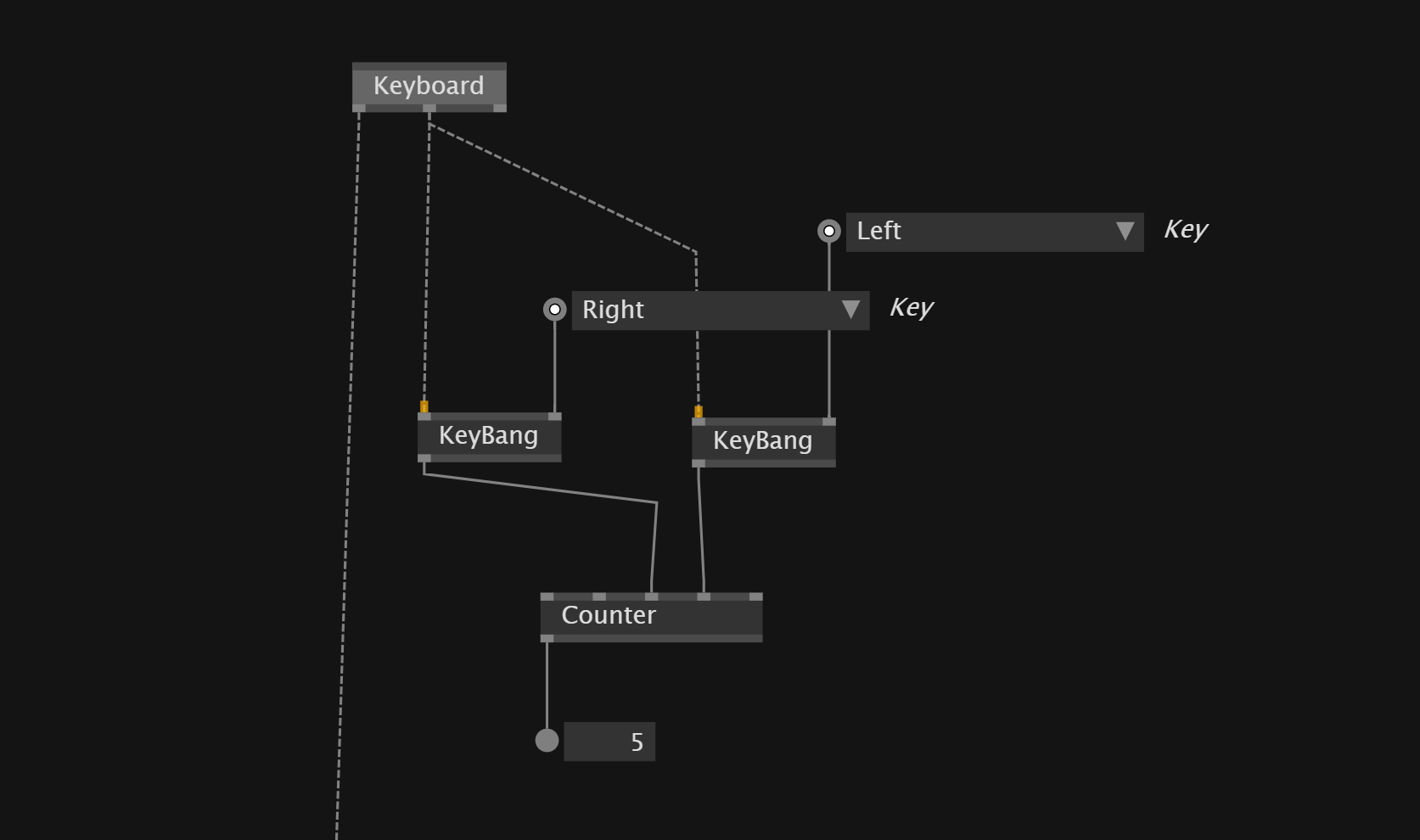

With a KeyBang we get a boolean Bang signal when a specific key gut pushed. This can be useful for Counter
KeyToggle toggles between true and false every time the assigned key gets pressed.
Get Typed Text from keyboard
The TypeWriter node from Skia allows to get the typed text from the keyboard, when the renderer is focused.

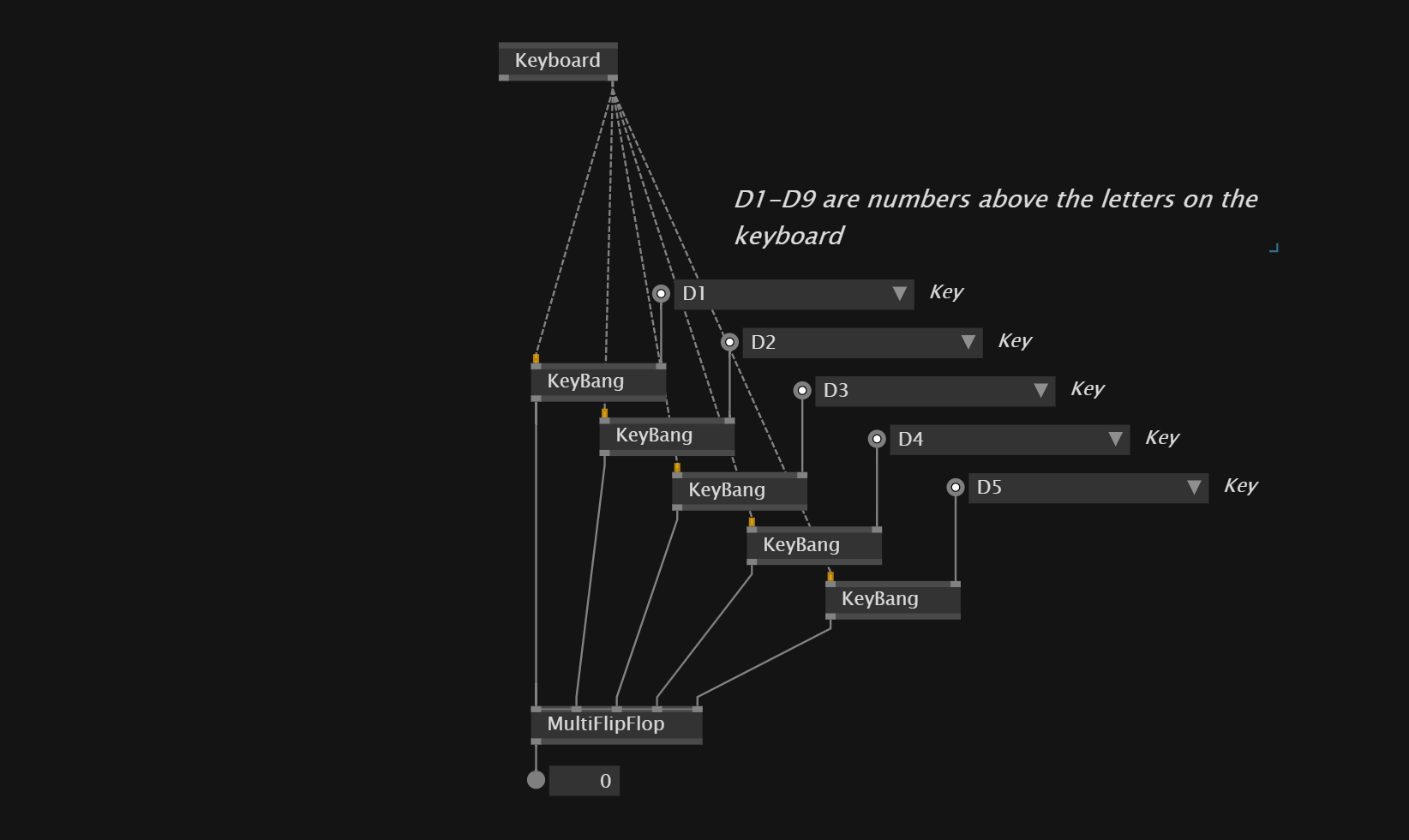

Index Value From Keys
MultiFlop node allows us to convert a certain key into an index value.
