Transformations

Moving shapes / 2D Matrix

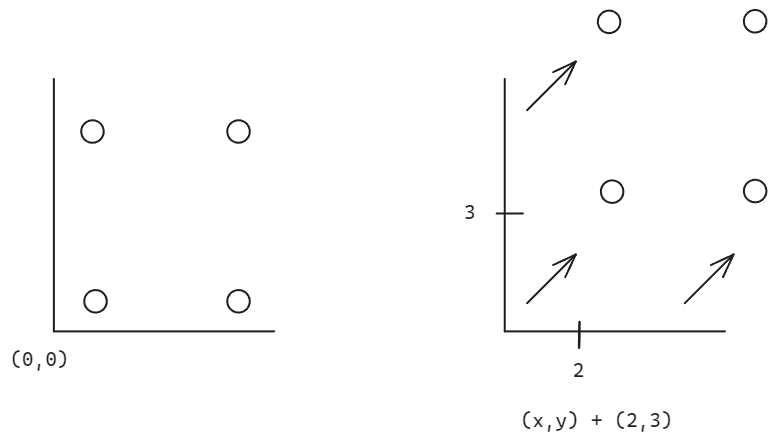

To move a shape on the canvas the trick is to translate the coordinate system underneath the shape.

Transforming the Canvas

To achieve that we add/subtract values to the uv variable.

Rotating Shapes

To rotate a shape around itself we need a 2D rotation matrix.

It rotates the coordinate system around the point (0,0) and if we apply the rotation to the uv the whole canvas gets rotated.

mat2 rotate2D(float theta) {
    float s = sin(theta);
    float c = cos(theta);
    return mat2(c,-s,s,c);
}

//directly in the return
mat2 rotate2D(float theta){
    return mat2(cos(theta),-sin(theta),sin(theta),cos(theta))
}

[c -s]
[s  c]

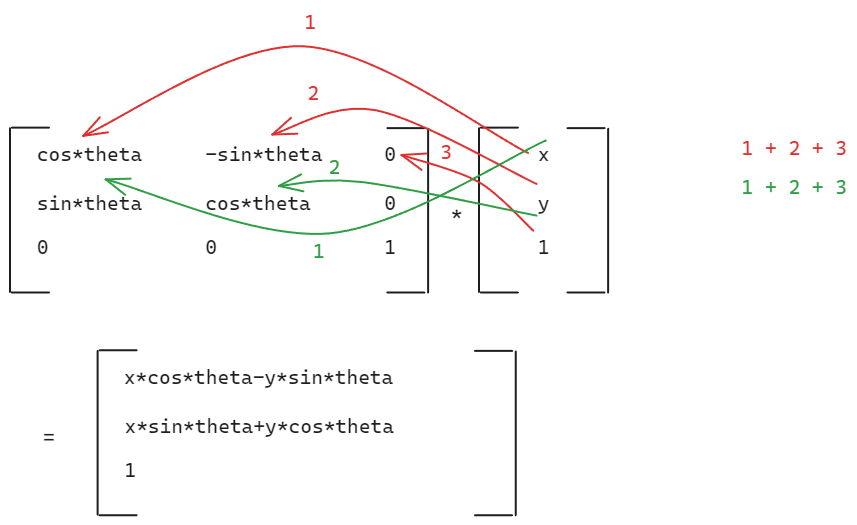

Matrix Multiplication

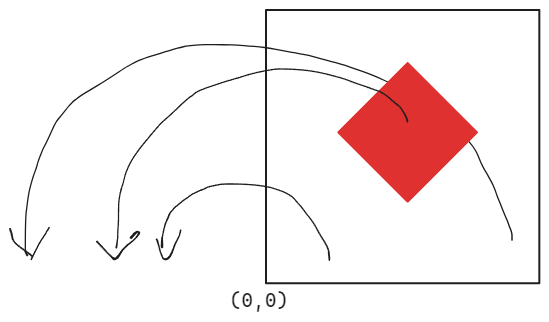

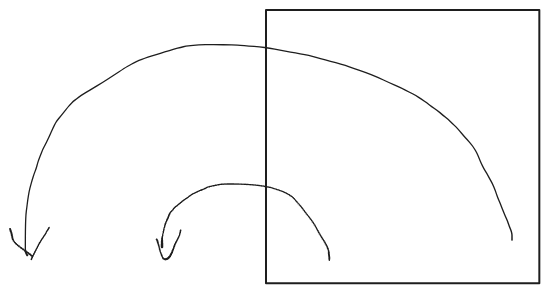

Rotation Around 0,0 Rotation Around 0,0 Shape

Is the the center of the shape on (0,0) does appear to rotate around itself. But if the shape has its center somewhere else the shape is rotation relative to (0,0).

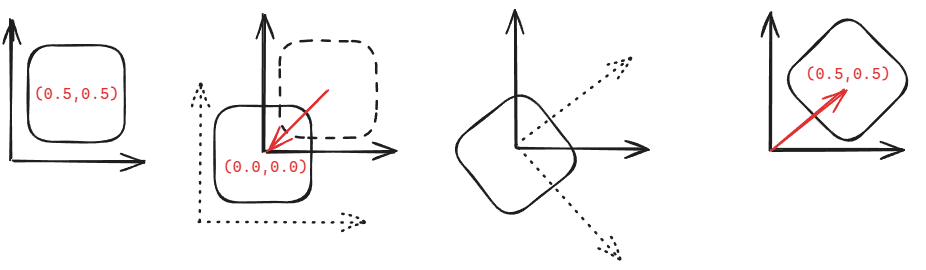

To fix that and let the shape always rotate around its own center no matter where the shape is we have to move the shape from its center to 0.0, execute the rotation, and then move it back to its center.

Rotating Canvas

To change the anchor of the rotation we would have to change the center value by manipulating the pos inside the shape function.

vec2 pos = pt-center
pos -= vec2(radius,0);//this is gonna be the new center of the shape

Scaling Shapes

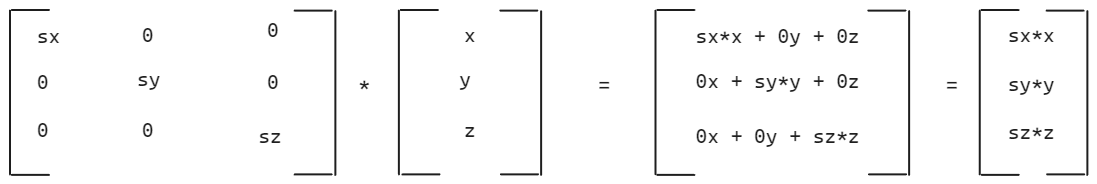

As for Rotation we also need a 2D Matrix for scaling our canvas. 2D Scaling Matrix Calc

mat2 scaleEqual2D(float scale){
  return mat2(scale.x,0,0,scale.y);
}
mat2 scaleIndiv2D(vec2 scale){
  return mat2(scale.x,0.0,0.0,scale.y);
}

[scale.x  0]
[0  scale.y]

void main(){
  ...

uv-= vec2(0.5)
uv *= scaleIndiv2D(vec2(0.2,0.5));
uv+= vec2(0.5);
}

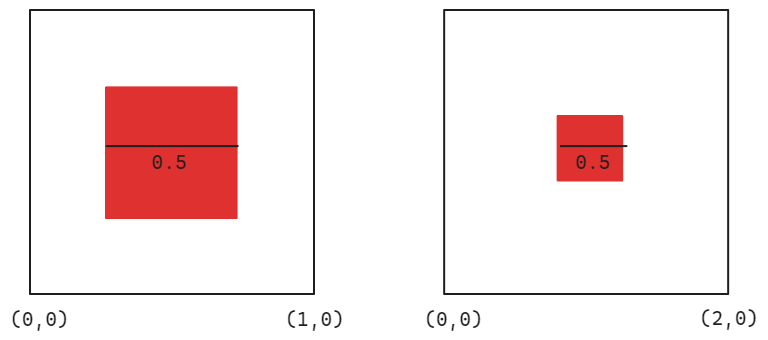

If the scale value is bigger than 1.0 the shape gets smaller because the value range of the canvas gets bigger and the area in which the pixel are inside the shapes gets smaller.

Scaling Values Canvas

If we combine rotation and scaling matrixes the order of transformation plays an important role
